3-647477-6 | AMP

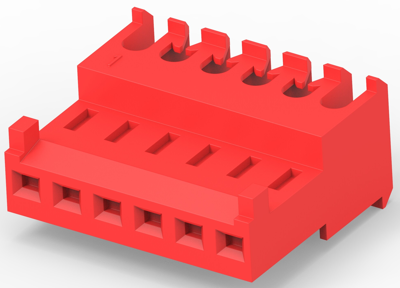

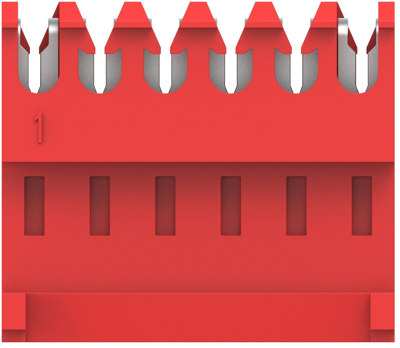

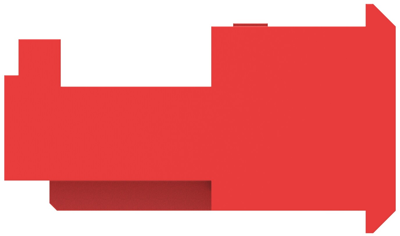

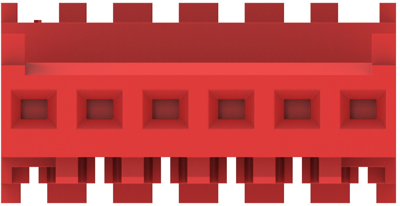

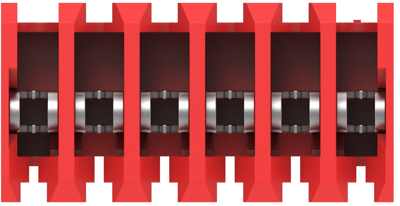

Socket header, 6 pole, pitch 2.54 mm, straight, red, 3-647477-6
Unit Price (€ / pc.)
2.9750 € *
Available in 5 Days: 1,791 pcs. - if ordered today
Total Price:
208.25 € *
Price list
Quantity
Price per unit*
70 pcs.
2.9750 €
200 pcs.
2.9393 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector assembly, 3-647477-6, AMP
The 3-647477-6 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.
Features
- One-step assembly
- No wire stripping
- No contact damage
- Reduced wiring errors
- Simpler tooling
- Simple maintenance and repair
Technical specifications
| Colour | red | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 5 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Pin number | 6 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | IDC connection | |
| Contact type | socket | |
| Rated voltage | 250 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
