3-647001-4 | AMP

Pin header, 4 pole, pitch 2.54 mm, angled, white, 3-647001-4

Order No.: 35P2029
EAN: 4099889929904
MPN:
3-647001-4
Series: MTA-100

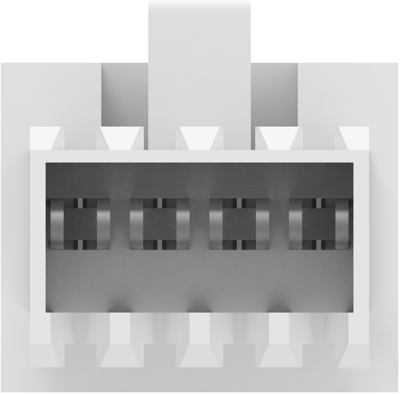

3-647001-4 AMP PCB Connection Systems Image 1

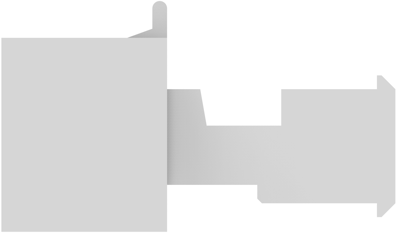

3-647001-4 AMP PCB Connection Systems Image 2

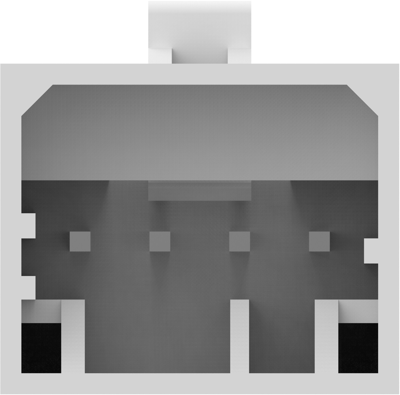

3-647001-4 AMP PCB Connection Systems Image 3

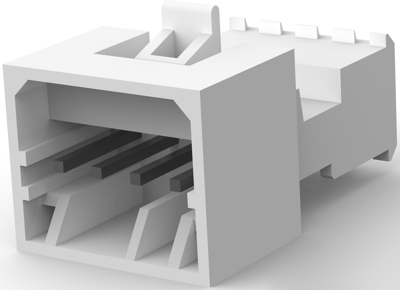

3-647001-4 AMP PCB Connection Systems Image 4

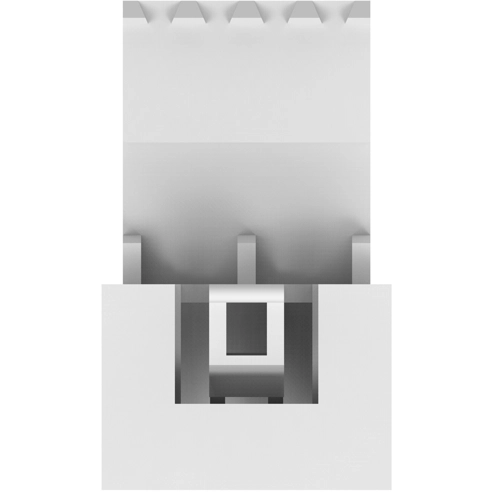

3-647001-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0948 € *
Available in 5 Days: 1,891 pcs. - if ordered today
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0948 €
10 pcs.
1.0115 €
25 pcs.
0.9401 €
50 pcs.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-647001-4, AMP

Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Tab
  • Housing Material: Nylon 6/6
  • Housing Color: white
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 5 A
Rated voltage 250 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour white
Pin number 4 pole
Connection IDC connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
