3-647001-3 | AMP

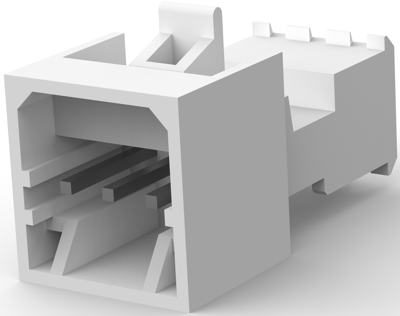

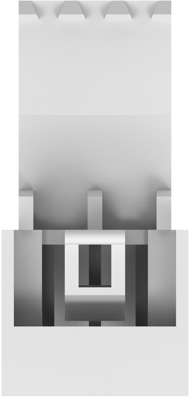

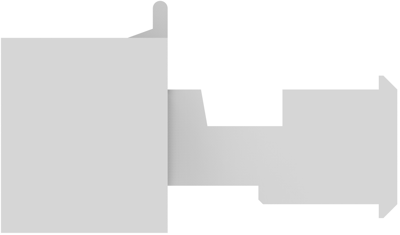

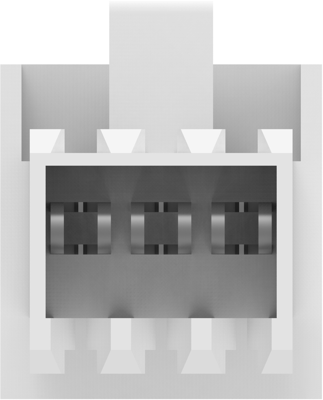

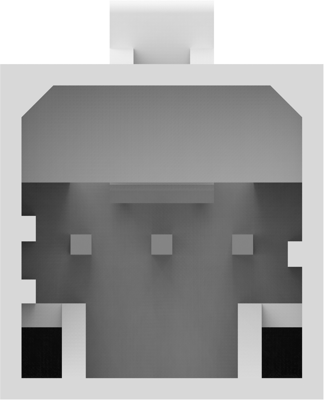

Pin header, 3 pole, pitch 2.54 mm, angled, white, 3-647001-3
Order No.: 35P1985
EAN: 4099889929577
MPN:
3-647001-3
Unit Price (€ / pc.)
0.833 € *
Standard delivery time from the manufacturer is: 28 Weeks
PCB Connection System, 3-647001-3, AMP
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Tab
- Housing Material: Nylon 6/6
- Housing Color: white
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Colour | white | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 5 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Pin number | 3 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | IDC connection | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
