3-647001-2 | AMP

Pin header, 2 pole, pitch 2.54 mm, angled, white, 3-647001-2

Order No.: 35P1942
EAN: 4099889929317
MPN:
3-647001-2
Series: MTA-100

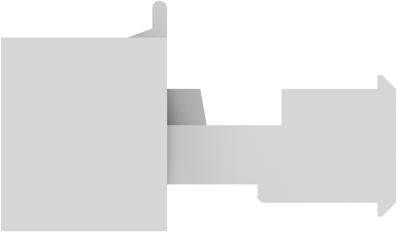

3-647001-2 AMP PCB Connection Systems Image 1

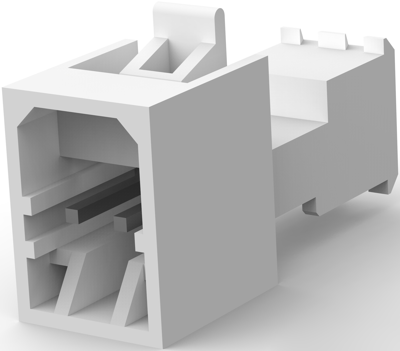

3-647001-2 AMP PCB Connection Systems Image 2

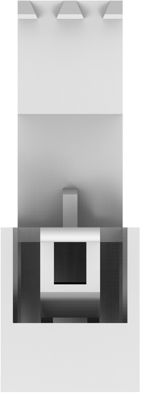

3-647001-2 AMP PCB Connection Systems Image 3

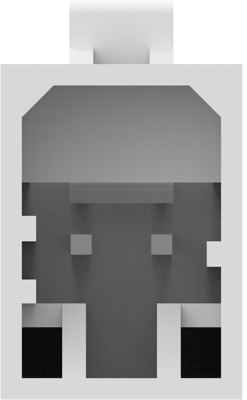

3-647001-2 AMP PCB Connection Systems Image 4

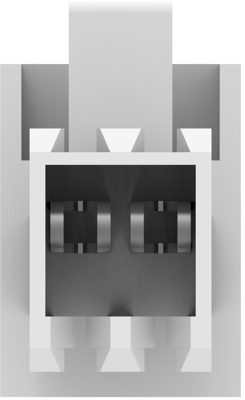

3-647001-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5712 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
1,713.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.5712 €

PCB Connection System, 3-647001-2, AMP

Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Tab
  • Housing Material: Nylon 6/6
  • Housing Color: white
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
contact surface tin-plated
Orientation angled
Number of rows 1
Type of locking Yes
Colour white
Connection IDC connection
Rated voltage 250 V
Contact type pin
Grid 2.54 mm
Connection plating tin-plated
Rated current 5 A
Pin number 2 pole
Version pin header
Additional parts equipped
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
