3-647000-8 | AMP

Pin header, 8 pole, pitch 2.54 mm, angled, red, 3-647000-8

Order No.: 35P2148
EAN: 4099889930610
MPN:
3-647000-8
Series: MTA-100

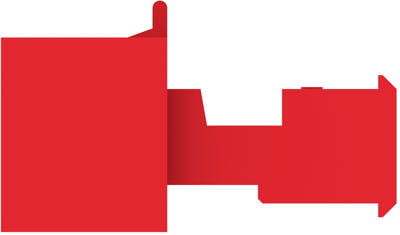

3-647000-8 AMP PCB Connection Systems Image 1

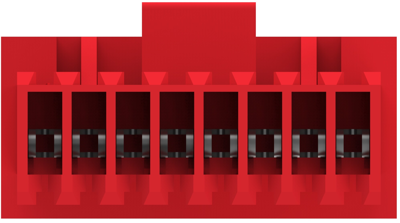

3-647000-8 AMP PCB Connection Systems Image 2

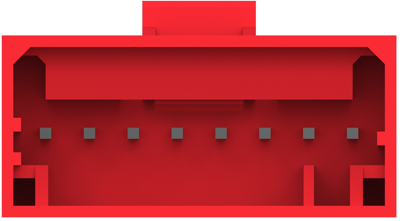

3-647000-8 AMP PCB Connection Systems Image 3

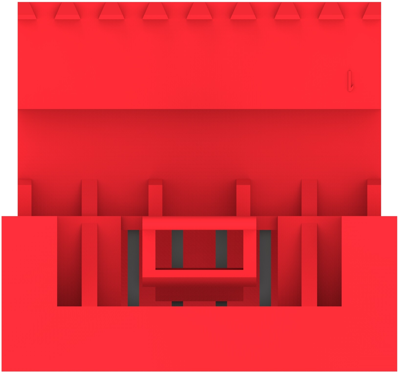

3-647000-8 AMP PCB Connection Systems Image 4

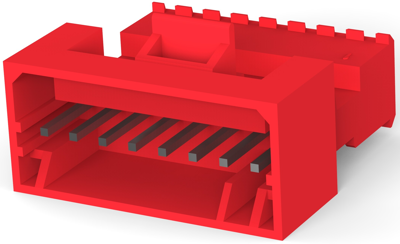

3-647000-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8683 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
1.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.8683 €

PCB Connection System, 3-647000-8, AMP

Wire-to-Wire, Wire & Cable, 8 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Tab
  • Housing Material: Nylon 6/6
  • Housing Color: red
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour red
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 8 pole
Version pin header
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
