3-6450332-2 | AMP

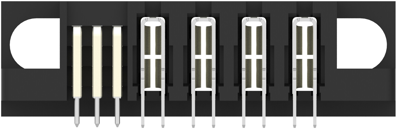

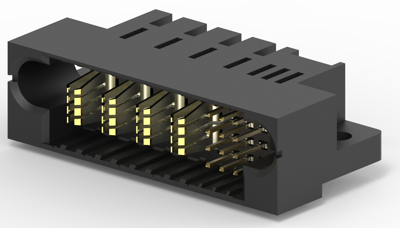

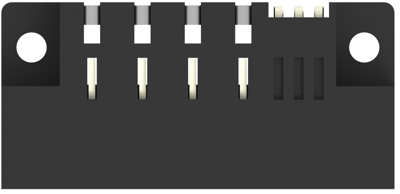

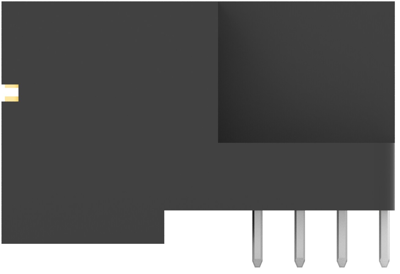

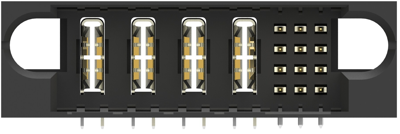

Pin header, 16 pole, pitch 2.54 mm, angled, black, 3-6450332-2
Order No.: 71P8301
EAN: 4099891732448
MPN:
3-6450332-2
Unit Price (€ / pc.)
10.4958 € *
Available in 5 Days: 20,032 pcs. - if ordered today
Total Price:
10.50 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4958 €
5 pcs.
9.9484 €
10 pcs.
9.3058 €
25 pcs.
8.4847 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 3-6450332-2, AMP
Rectangular power connector, Header, Plug, Board-to-Board, 16 Position, 6.35 mm / 2.54 mm Centerline, Printed circuit board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | gold-plated | |
| Pin number | 16 pole | |
| Rated voltage | 200 V | |
| Connection plating | tin-plated | |
| Orientation | angled | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Number of rows | 4 | |
| Additional parts | equipped | |
| Connection | solder connection | |
| Rated current | 42 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
