3-644617-3 | AMP

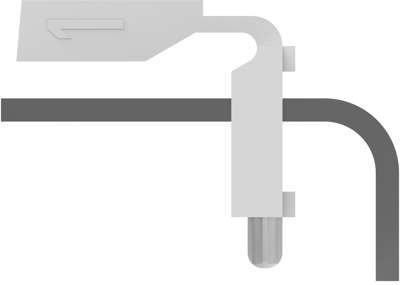

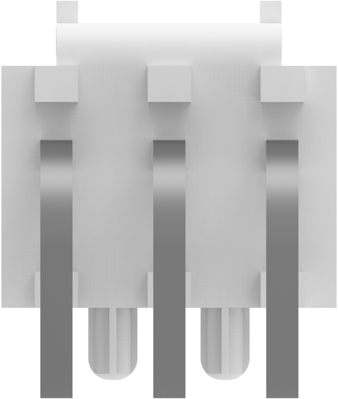

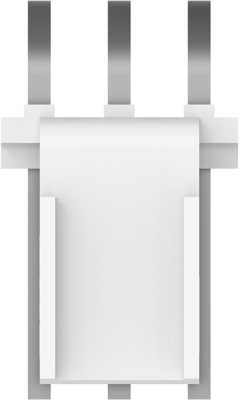

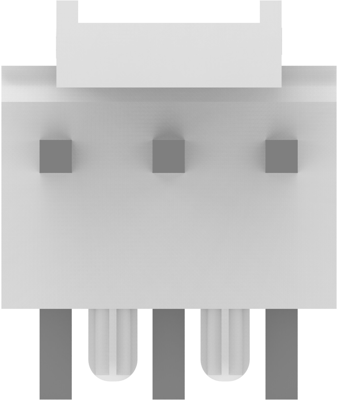

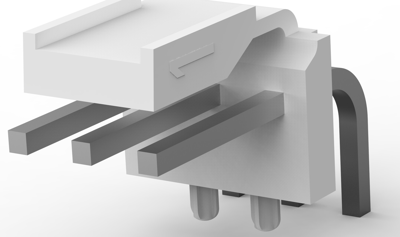

Pin header, 3 pole, pitch 3.96 mm, angled, natural, 3-644617-3
Unit Price (€ / pc.)
0.2999 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2999 €
10 pcs.
0.2773 €
25 pcs.
0.2582 €
50 pcs.
0.2344 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-644617-3, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic Polyester - GF
- Housing Color: natural
- Orientation: angled
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 7 A | |
| Rated voltage | 600 V | |
| Orientation | angled | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 3 pole | |
| Connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
