3-644563-5 | AMP

Socket housing, 5 pole, pitch 2.54 mm, angled, white, 3-644563-5

Order No.: 35P2037
EAN: 4099889929959
MPN:
3-644563-5
Series: MTA-100

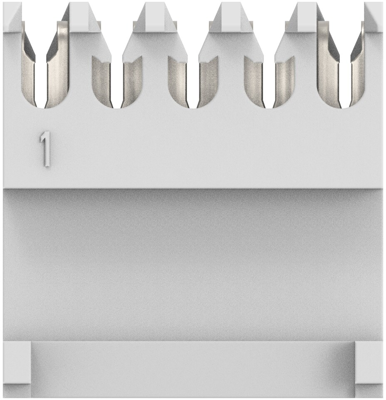

3-644563-5 AMP PCB Connection Systems Image 1

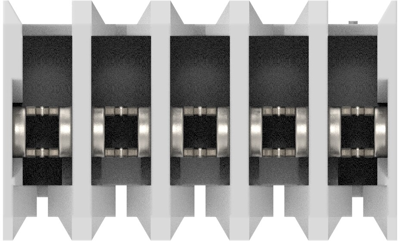

3-644563-5 AMP PCB Connection Systems Image 2

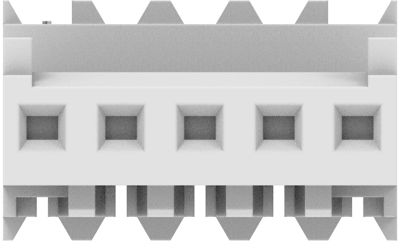

3-644563-5 AMP PCB Connection Systems Image 3

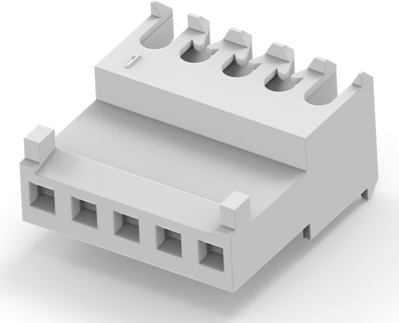

3-644563-5 AMP PCB Connection Systems Image 4

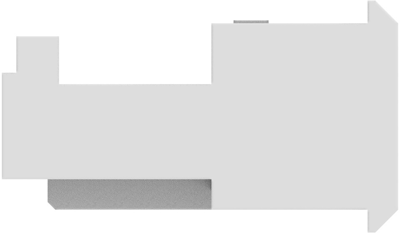

3-644563-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
2.92 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5831 €
10 pcs.
0.5474 €
25 pcs.
0.4998 €
50 pcs.
0.4522 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-644563-5, AMP

Wire-to-Board, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: white
  • Number of positions: 5
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version socket housing
Rated current 5 A
Rated voltage 250 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour white
Pin number 5 pole
Connection IDC connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
