3-644540-2 | AMP

Socket housing, 2 pole, pitch 2.54 mm, angled, red, 3-644540-2

Order No.: 35P1908
EAN: 4099889929041
MPN:
3-644540-2
Series: MTA-100

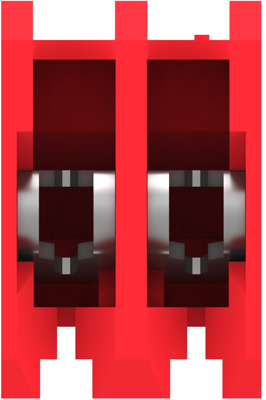

3-644540-2 AMP PCB Connection Systems Image 1

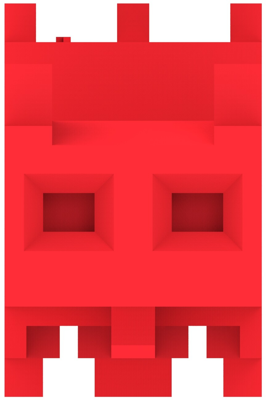

3-644540-2 AMP PCB Connection Systems Image 2

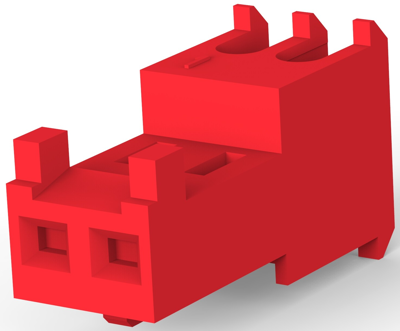

3-644540-2 AMP PCB Connection Systems Image 3

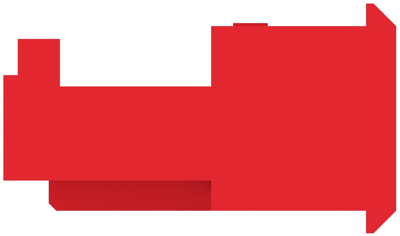

3-644540-2 AMP PCB Connection Systems Image 4

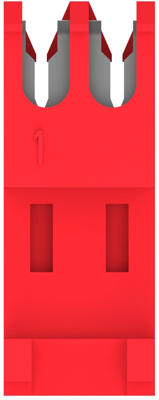

3-644540-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2261 € *
Available in 5 Days: 39,201 pcs. - if ordered today
Total Price:
22.61 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2261 €
250 pcs.
0.2083 €
500 pcs.
0.1940 €
1000 pcs.
0.1749 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-644540-2, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: red
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version socket housing
Rated current 5 A
Rated voltage 250 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour red
Pin number 2 pole
Connection IDC connection
Logistics
Property Value
Country of origin IT
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
