3-644456-8 | AMP

Pin header, 8 pole, pitch 2.54 mm, straight, natural, 3-644456-8

Order No.: 35P1770
EAN: 4099889927894
MPN:
3-644456-8
Series: MTA-100

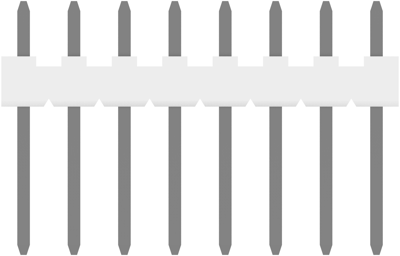

3-644456-8 AMP PCB Connection Systems Image 1

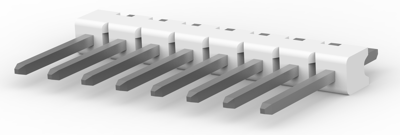

3-644456-8 AMP PCB Connection Systems Image 2
3-644456-8 AMP PCB Connection Systems Image 3
3-644456-8 AMP PCB Connection Systems Image 4
3-644456-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7140 € *
Available in 5 Days: 27,181 pcs. - if ordered today
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
10 pcs.
0.6307 €
50 pcs.
0.5593 €
100 pcs.
0.4998 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-644456-8, AMP

Wire-to-Board, Printed Circuit Board, Breakaway, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Breakable Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 8 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
