3-644083-8 | AMP

Socket housing, 8 pole, pitch 2.54 mm, angled, black, 3-644083-8

Order No.: 35P2142
EAN: 4099889930573
MPN:
3-644083-8
Series: MTA-100
AMP

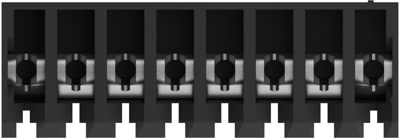

3-644083-8 AMP PCB Connection Systems Image 1

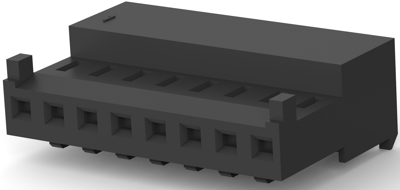

3-644083-8 AMP PCB Connection Systems Image 2

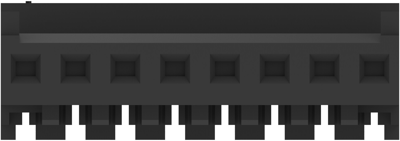

3-644083-8 AMP PCB Connection Systems Image 3

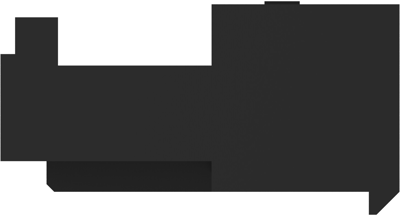

3-644083-8 AMP PCB Connection Systems Image 4
3-644083-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.7961 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.7961 €

PCB Connection System, 3-644083-8, AMP

Wire-to-Board, Wire & Cable, 8 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Connection IDC connection
Connection plating tin-plated
Number of rows 1
Version socket housing
Additional parts equipped
Colour black
Contact type socket
contact surface tin-plated
Rated voltage 250 V
Rated current 5 A
Orientation angled
Pin number 8 pole
Grid 2.54 mm
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
