3-644083-6 | AMP

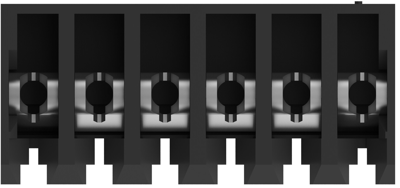

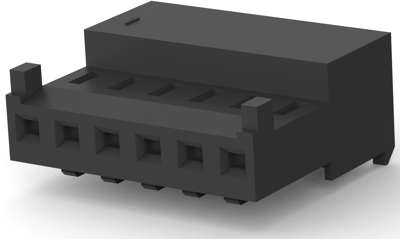

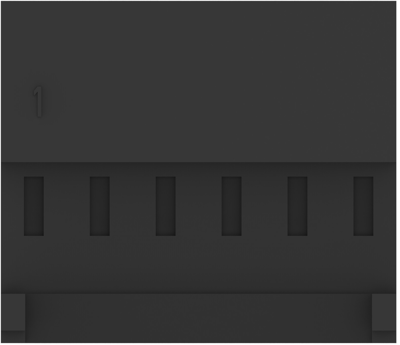

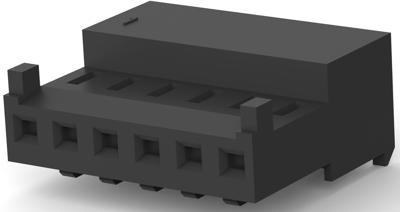

Socket housing, 6 pole, pitch 2.54 mm, angled, black, 3-644083-6
As a private customer, you can buy this item as soon as we have it back in stock.
PCB Connection System, 3-644083-6, AMP
Wire-to-Board, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: black
- Number of positions: 6
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Contact type | socket | |
| Number of rows | 1 | |
| Version | socket housing | |
| Rated current | 5 A | |
| Connection | IDC connection | |
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| contact surface | tin-plated | |
| Grid | 2.54 mm | |
| Orientation | angled | |
| Pin number | 6 pole | |
| Additional parts | equipped | |
| Connection plating | tin-plated | |
| Colour | black |
Download
Logistics
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
