3-644083-5 | AMP

Socket housing, 5 pole, pitch 2.54 mm, angled, black, 3-644083-5

Order No.: 35P2056
EAN: 4099889930054
MPN:
3-644083-5
Series: MTA-100
AMP

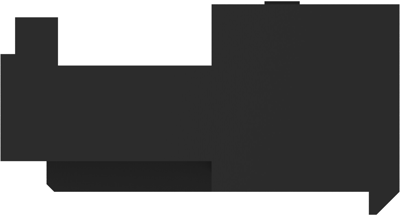

3-644083-5 AMP PCB Connection Systems Image 1

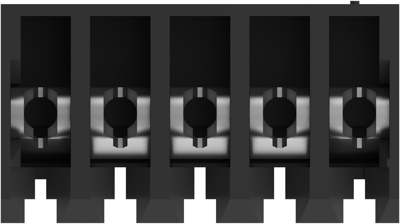

3-644083-5 AMP PCB Connection Systems Image 2

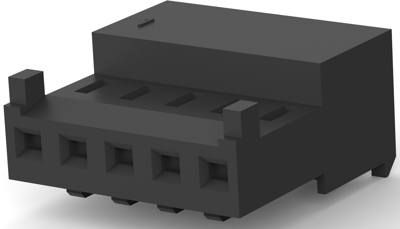

3-644083-5 AMP PCB Connection Systems Image 3

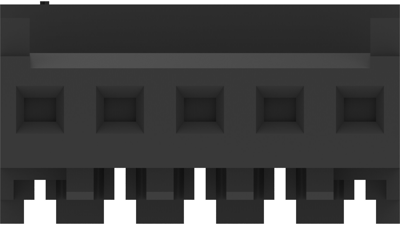

3-644083-5 AMP PCB Connection Systems Image 4

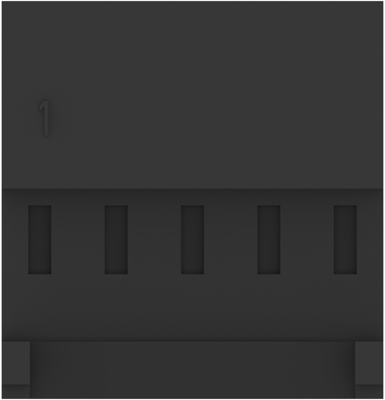

3-644083-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0115 € *
Available: 0 pcs.
Available in 5 Days: 3,787 pcs.
Leadtime: 1 Week **
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
90 pcs.
1.0115 €
450 pcs.
0.9639 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 3-644083-5, AMP

Wire-to-Board, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 5
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Connection IDC connection
Connection plating tin-plated
Number of rows 1
Version socket housing
Additional parts equipped
Colour black
Contact type socket
contact surface tin-plated
Rated voltage 250 V
Rated current 5 A
Orientation angled
Pin number 5 pole
Grid 2.54 mm
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
