3-644083-3 | AMP

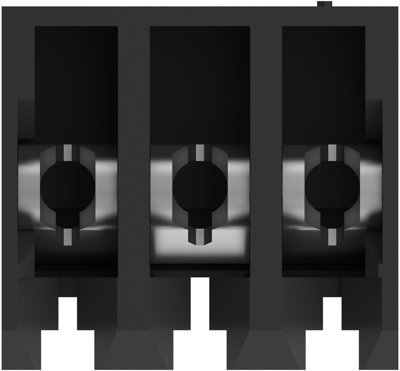

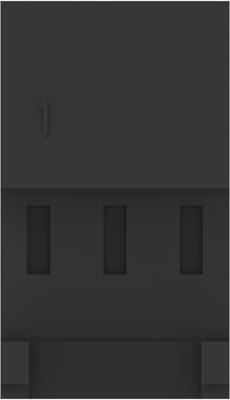

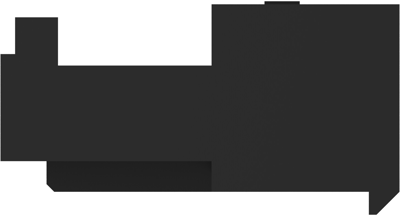

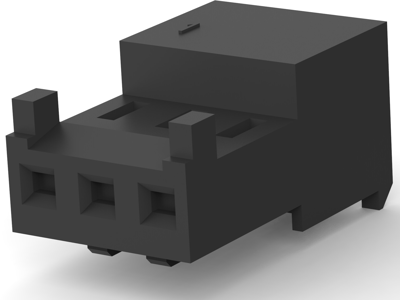

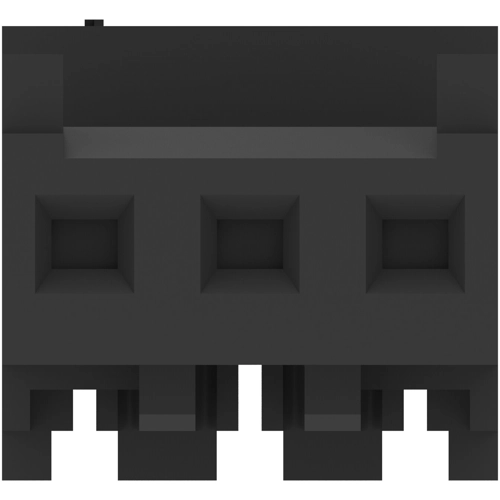

Socket housing, 3 pole, pitch 2.54 mm, angled, black, 3-644083-3
Unit Price (€ / pc.)
0.6188 € *
Standard delivery time from the manufacturer is: 39 Weeks
PCB Connection System, 3-644083-3, AMP
Wire-to-Board, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: black
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Number of rows | 1 | |
| Grid | 2.54 mm | |
| Orientation | angled | |
| Pin number | 3 pole | |
| Connection | IDC connection | |
| Type of locking | Yes | |
| Colour | black | |
| Rated current | 5 A | |
| Additional parts | equipped | |
| Contact type | socket | |
| Version | socket housing | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Rated voltage | 250 V |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
