3-644020-3 | AMP

Socket housing, 3 pole, pitch 2.54 mm, straight, white, 3-644020-3

Order No.: 35P1947
EAN: 4099889929355
MPN:
3-644020-3
Series: MTA-100

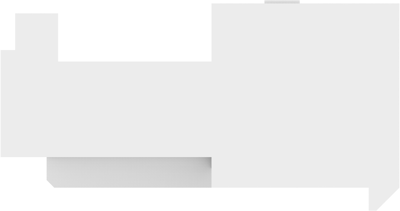

3-644020-3 AMP PCB Connection Systems Image 1

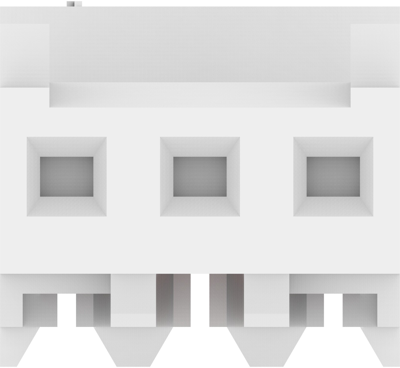

3-644020-3 AMP PCB Connection Systems Image 2

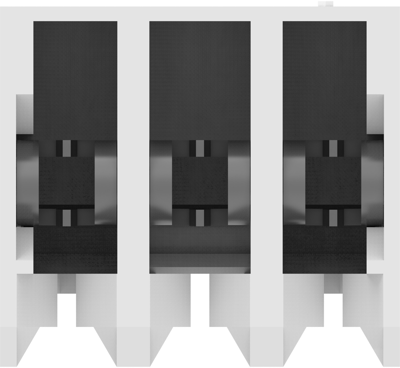

3-644020-3 AMP PCB Connection Systems Image 3

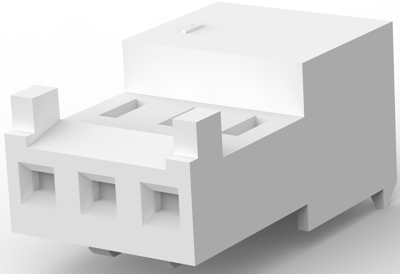

3-644020-3 AMP PCB Connection Systems Image 4

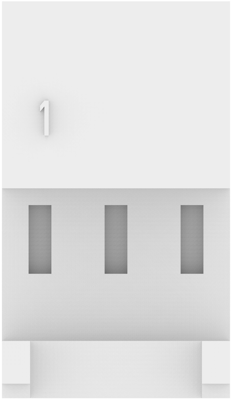

3-644020-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9520 € *
Available in 5 Days: 5,000 pcs. - if ordered today
Total Price:
14,280.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
15000 pcs.
0.9520 €

PCB Connection System, 3-644020-3, AMP

Wire-to-Board, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: white
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour white
Type of locking Yes
contact surface gold-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 3 pole
Version socket housing
Additional parts equipped
Orientation straight
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
