3-643817-6 | AMP

Socket housing, 6 pole, pitch 3.96 mm, straight, orange, 3-643817-6

Order No.: 35P1310
EAN: 4099889924367
MPN:
3-643817-6
Series: MTA-156
3-643817-6 AMP PCB Connection Systems Image 1

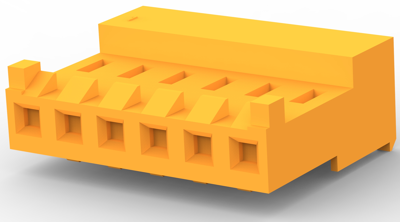

3-643817-6 AMP PCB Connection Systems Image 2

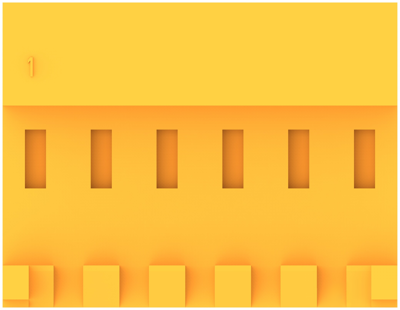

3-643817-6 AMP PCB Connection Systems Image 3

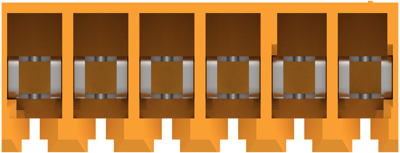

3-643817-6 AMP PCB Connection Systems Image 4

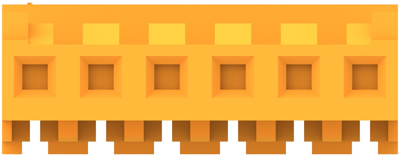

3-643817-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9520 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9520 €
10 pcs.
0.8806 €
25 pcs.
0.8211 €
50 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-643817-6, AMP

Wire-to-Board, Printed Circuit Board, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon
  • Housing Color: orange
  • Number of positions: 6
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Pin number 6 pole
Rated voltage 600 V
Additional parts equipped
Connection IDC connection
Number of rows 1
Version socket housing
Rated current 7 A
Contact type socket
Connection plating tin-plated
Type of locking Yes
Colour orange
contact surface tin-plated
Grid 3.96 mm
Orientation straight
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
