3-643817-2 | AMP

Socket housing, 2 pole, pitch 3.96 mm, straight, orange, 3-643817-2

Order No.: 35P1157
EAN: 4099889922905
MPN:
3-643817-2
Series: MTA-156

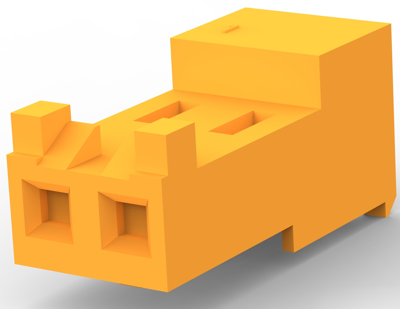

3-643817-2 AMP PCB Connection Systems Image 1

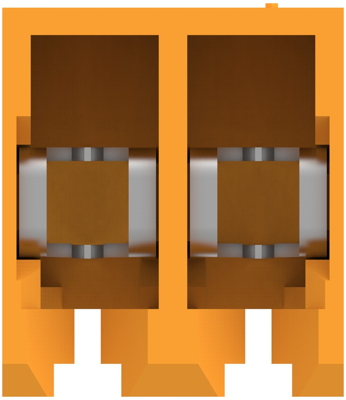

3-643817-2 AMP PCB Connection Systems Image 2

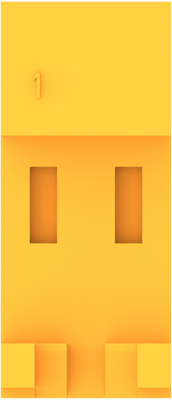

3-643817-2 AMP PCB Connection Systems Image 3

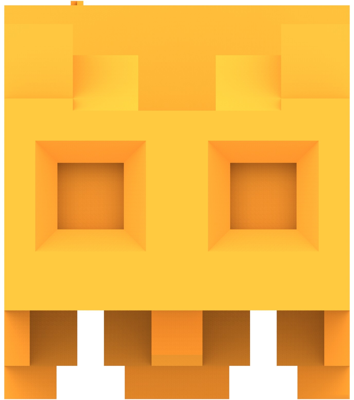

3-643817-2 AMP PCB Connection Systems Image 4

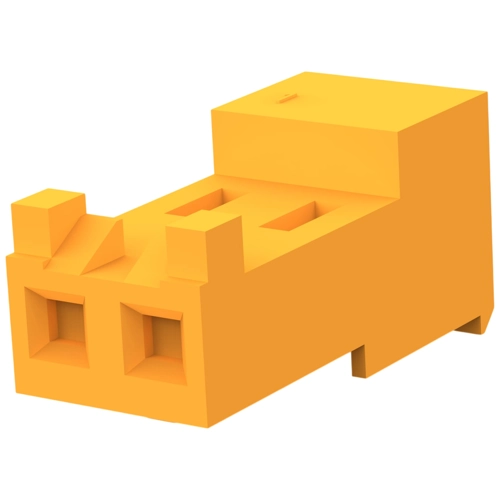

3-643817-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2440 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
3,415.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
14000 pcs.
0.2440 €

PCB Connection System, 3-643817-2, AMP

Wire-to-Board, Printed Circuit Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon
  • Housing Color: orange
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
contact surface tin-plated
Orientation straight
Number of rows 1
Type of locking Yes
Colour orange
Connection IDC connection
Rated voltage 600 V
Contact type socket
Grid 3.96 mm
Connection plating tin-plated
Rated current 7 A
Pin number 2 pole
Version socket housing
Additional parts equipped
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
