3-643816-3 | AMP

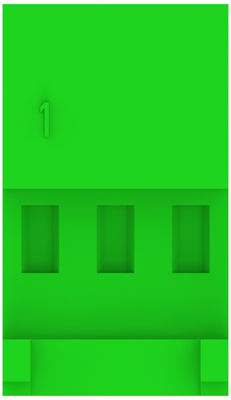

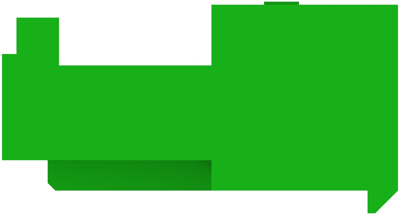

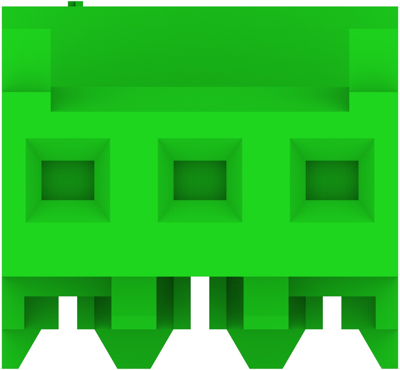

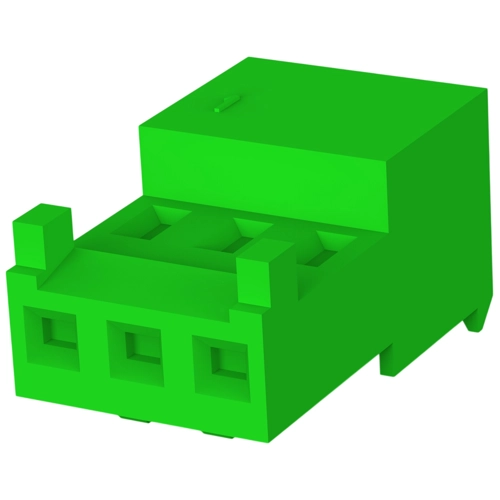

Socket housing, 3 pole, pitch 2.54 mm, angled, green, 3-643816-3
Unit Price (€ / pc.)
0.2773 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
0.28 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2773 €
10 pcs.
0.2570 €
25 pcs.
0.2404 €
50 pcs.
0.2178 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-643816-3, AMP
Wire-to-Board, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: green
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Rated voltage | 250 V | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Pin number | 3 pole | |
| Colour | green | |
| Additional parts | equipped | |
| Connection plating | tin-plated | |
| Rated current | 5 A | |
| Version | socket housing | |
| Type of locking | Yes | |
| Orientation | angled | |
| Connection | IDC connection | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
