3-643815-9 | AMP

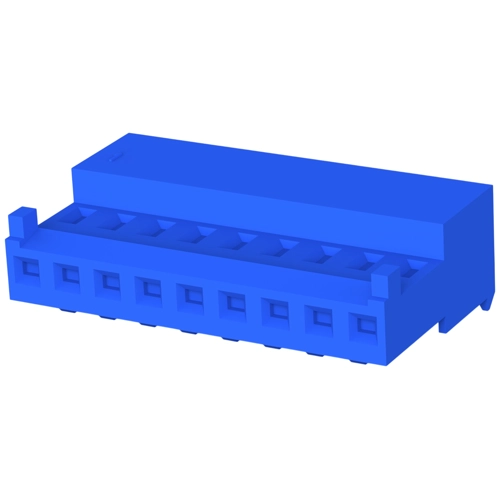

Socket housing, 9 pole, pitch 2.54 mm, angled, blue, 3-643815-9

Order No.: 35P2161
EAN: 4099889930696
MPN:
3-643815-9
Series: MTA-100

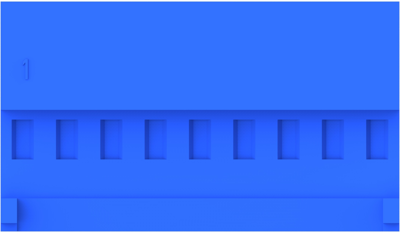

3-643815-9 AMP PCB Connection Systems Image 1

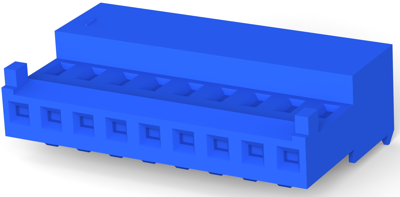

3-643815-9 AMP PCB Connection Systems Image 2

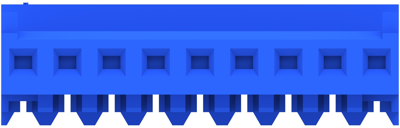

3-643815-9 AMP PCB Connection Systems Image 3

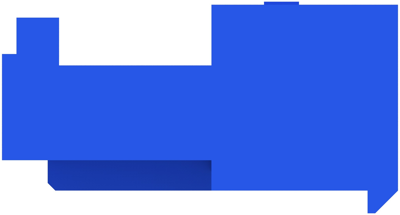

3-643815-9 AMP PCB Connection Systems Image 4

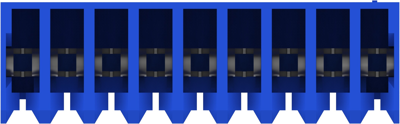

3-643815-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.6426 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
3,855.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
0.6426 €

PCB Connection System, 3-643815-9, AMP

Wire-to-Board, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: blue
  • Number of positions: 9
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour blue
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 9 pole
Version socket housing
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
