3-643814-9 | AMP

Socket housing, 9 pole, pitch 2.54 mm, angled, white, 3-643814-9

Order No.: 35P2160
EAN: 4099889930689
MPN:
3-643814-9
Series: MTA-100

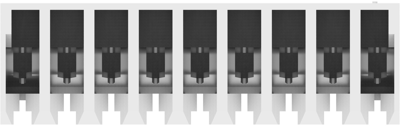

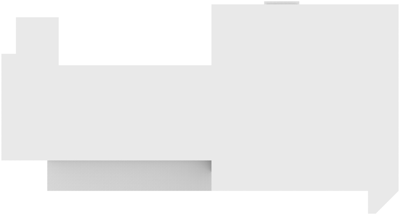

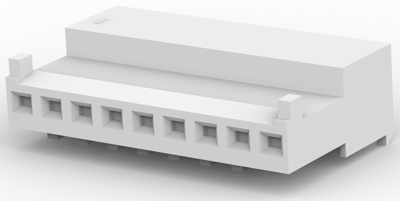

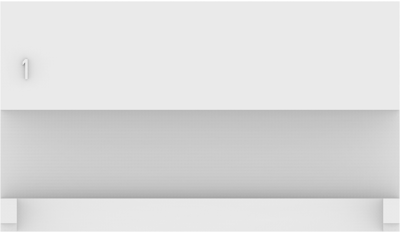

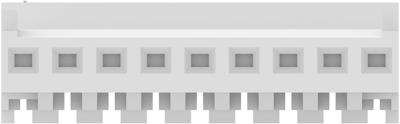

3-643814-9 AMP PCB Connection Systems Image 1
3-643814-9 AMP PCB Connection Systems Image 2
3-643814-9 AMP PCB Connection Systems Image 3
3-643814-9 AMP PCB Connection Systems Image 4
3-643814-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.7612 € *
Available in 5 Days: 157 pcs. - if ordered today
Total Price:
176.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
1.7612 €

PCB Connection System, 3-643814-9, AMP

Wire-to-Board, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: white
  • Number of positions: 9
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Number of rows 1
Grid 2.54 mm
Orientation angled
Pin number 9 pole
Connection IDC connection
Type of locking Yes
Colour white
Rated current 5 A
Additional parts equipped
Contact type socket
Version socket housing
Connection plating tin-plated
contact surface tin-plated
Rated voltage 250 V
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
