3-643813-8 | AMP

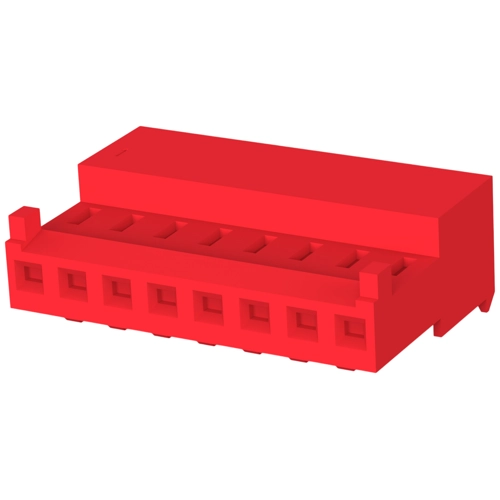

Socket housing, 8 pole, pitch 2.54 mm, angled, red, 3-643813-8

Order No.: 35P2135
EAN: 4099889930535
MPN:
3-643813-8
Series: MTA-100

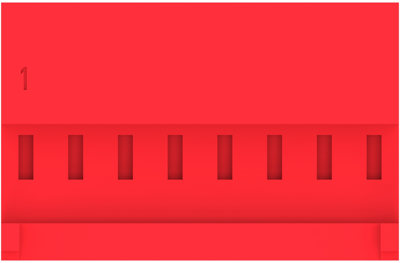

3-643813-8 AMP PCB Connection Systems Image 1

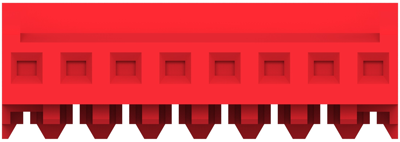

3-643813-8 AMP PCB Connection Systems Image 2

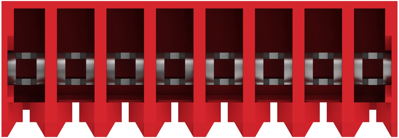

3-643813-8 AMP PCB Connection Systems Image 3

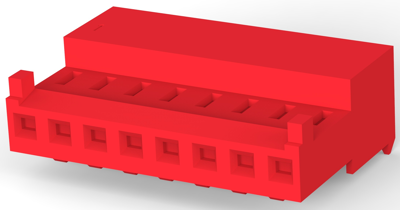

3-643813-8 AMP PCB Connection Systems Image 4

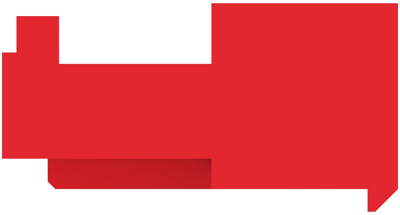

3-643813-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7140 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
10 pcs.
0.6188 €
50 pcs.
0.5593 €
100 pcs.
0.4879 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-643813-8, AMP

Wire-to-Board, Wire & Cable, 8 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: red
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
Connection IDC connection
contact surface tin-plated
Connection plating tin-plated
Orientation angled
Number of rows 1
Grid 2.54 mm
Type of locking Yes
Rated current 5 A
Rated voltage 250 V
Pin number 8 pole
Contact type socket
Version socket housing
Additional parts equipped
Colour red
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
