3-641653-2 | AMP

Socket housing, 2 pole, pitch 2.54 mm, angled, red, 3-641653-2

Order No.: 35P1934
EAN: 4099889929249
MPN:
3-641653-2
Series: MTA-100

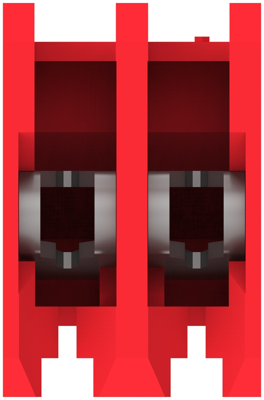

3-641653-2 AMP PCB Connection Systems Image 1

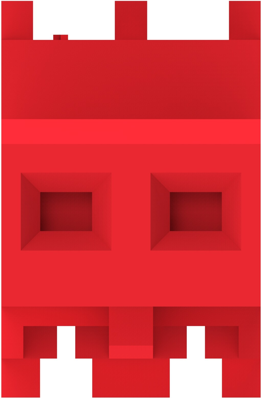

3-641653-2 AMP PCB Connection Systems Image 2

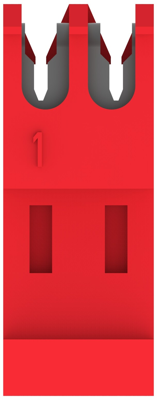

3-641653-2 AMP PCB Connection Systems Image 3

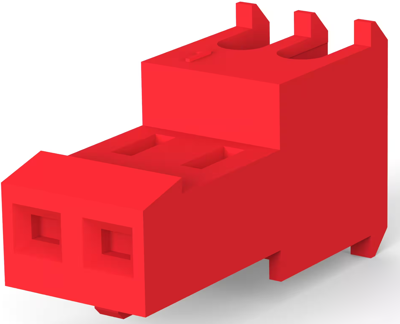

3-641653-2 AMP PCB Connection Systems Image 4

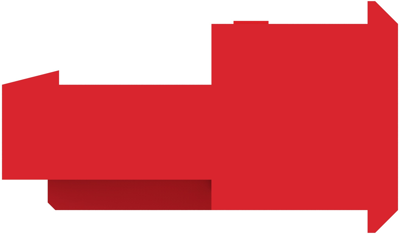

3-641653-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1856 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
2,784.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
15000 pcs.
0.1856 €

PCB Connection System, 3-641653-2, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: red
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour red
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 2 pole
Version socket housing
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
