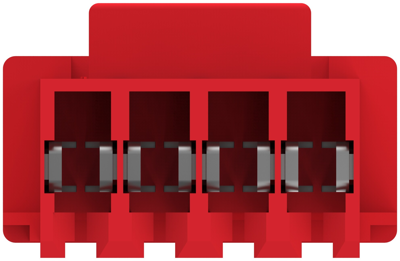

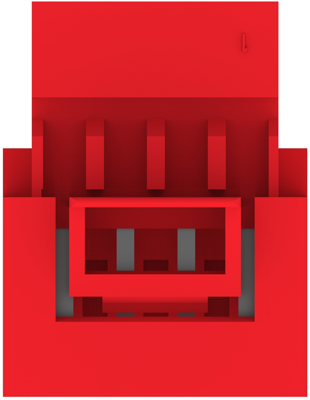

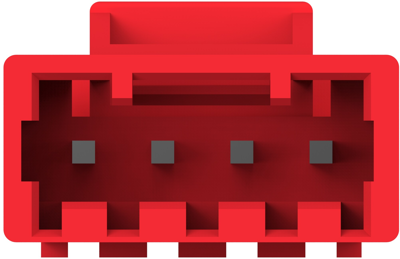

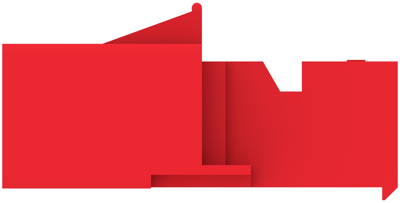

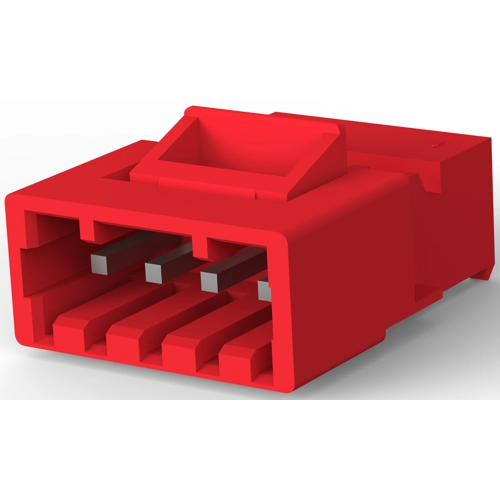

3-641437-4 | AMP
Pin header, 4 pole, pitch 3.96 mm, angled, white, 3-641437-4
Unit Price (€ / pc.)
1.5946 € *
Standard delivery time from the manufacturer is: 20 Weeks
PCB Connection System, 3-641437-4, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon - GF
- Housing Color: white
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Colour | white | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 7 A | |
| Grid | 3.96 mm | |
| Connection plating | tin-plated | |
| Pin number | 4 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | IDC connection | |
| Contact type | pin | |
| Rated voltage | 600 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
