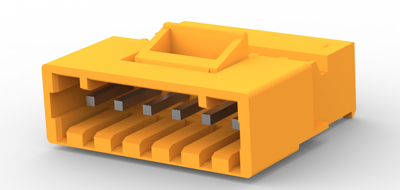

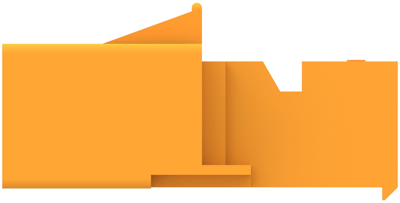

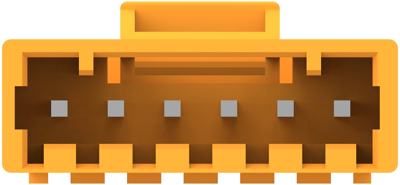

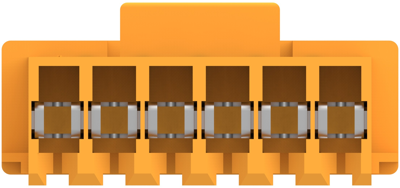

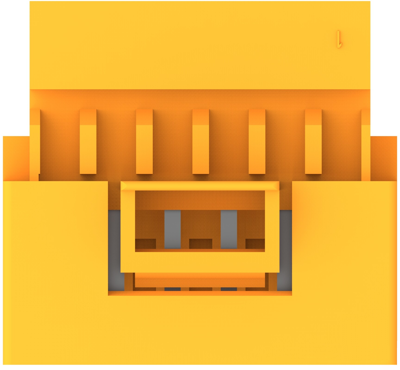

3-641435-6 | AMP
Pin header, 6 pole, pitch 3.96 mm, angled, orange, 3-641435-6
Unit Price (€ / pc.)
1.7374 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
8.69 € *
Price list
Quantity
Price per unit*
5 pcs.
1.7374 €
10 pcs.
1.6065 €
25 pcs.
1.4994 €
50 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-641435-6, AMP
Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: orange
- Number of positions: 6
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Pin number | 6 pole | |
| Colour | orange | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 7 A | |
| Version | pin header | |
| Connection | IDC connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 600 V | |
| contact surface | tin-plated | |
| Orientation | angled | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
