3-641238-7 | AMP

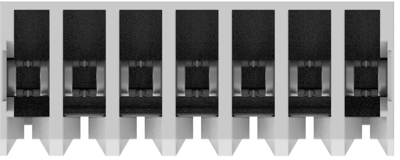

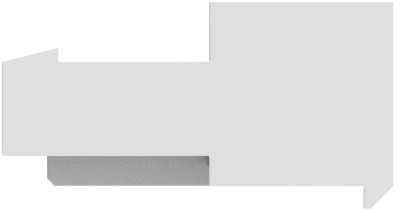

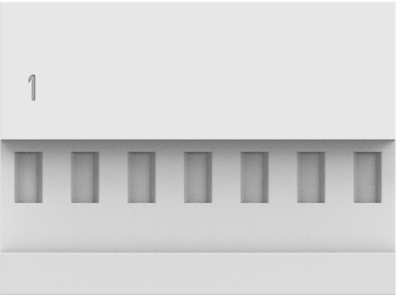

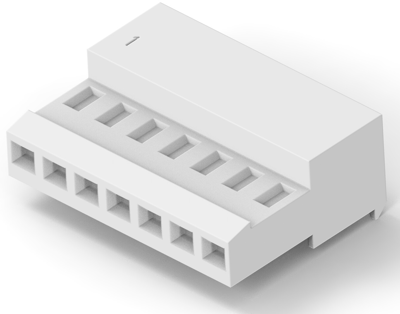

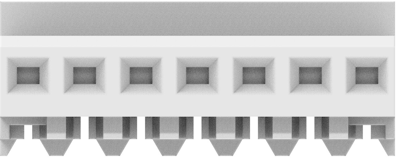

Socket header, 7 pole, pitch 2.54 mm, straight, white, 3-641238-7
Unit Price (€ / pc.)
4.4387 € *
Available: 0 pcs.
Available in 5 Days: 400 pcs.
Leadtime: 21 Weeks **
Total Price:
199.74 € *
Price list
Quantity
Price per unit*
45 pcs.
4.4387 €
150 pcs.
3.9865 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector assembly, 3-641238-7, AMP
The 3-641238-7 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.
Features
- One-step assembly
- No wire stripping
- No contact damage
- Reduced wiring errors
- Simpler tooling
- Simple maintenance and repair
Technical specifications
| Connection | Schneidklemmanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | weiß | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Orientation | gerade | |
| Pin number | 7-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
