3-641218-6 | AMP

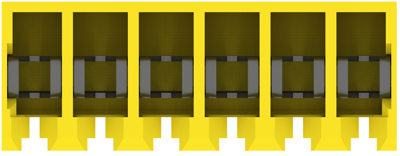

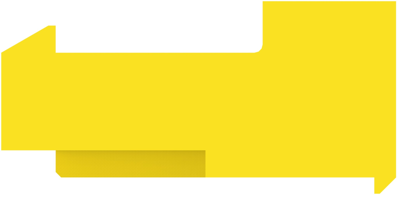

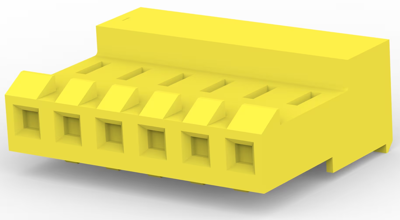

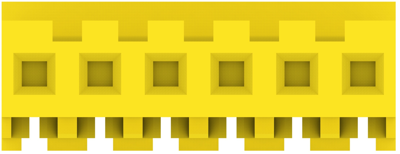

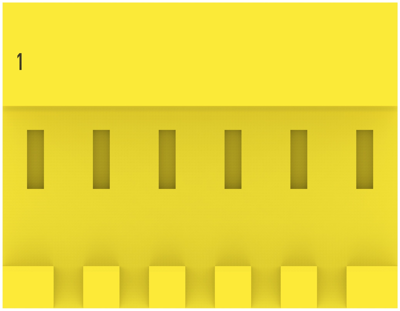

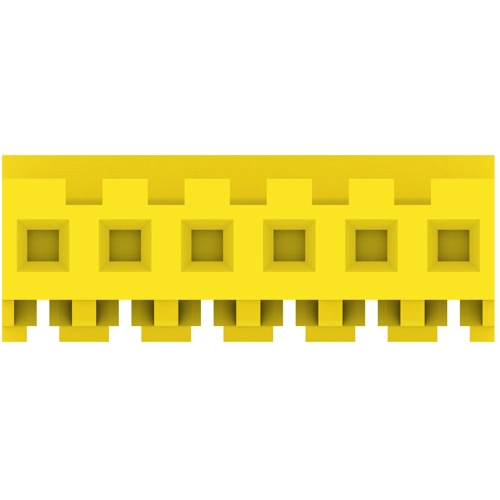

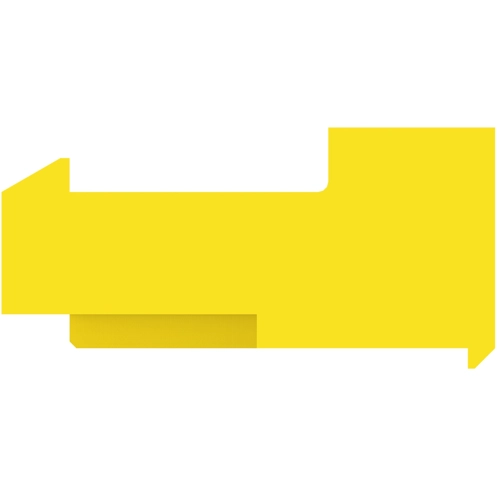

Socket header, 6 pole, pitch 3.96 mm, straight, yellow, 3-641218-6
Unit Price (€ / pc.)
2.5585 € *
Available in 5 Days: 840 pcs. - if ordered today
Power connector, 3-641218-6, AMP
Rectangular power connector, Connector assembly, Receptacle, Wire-to-Board, 6 Position, 3.96 mm Centerline, Wire & Cable, UL 94V-2.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Rated voltage | 600 V | |
| Pin number | 6 pole | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Number of rows | 1 | |
| Connection | IDC connection | |
| Colour | yellow | |
| Grid | 3.96 mm | |
| Rated current | 7 A | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Version | socket header | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
