3-641217-8 | AMP

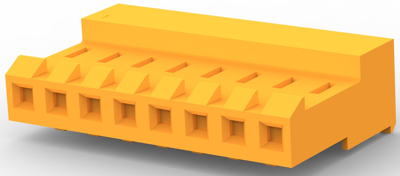

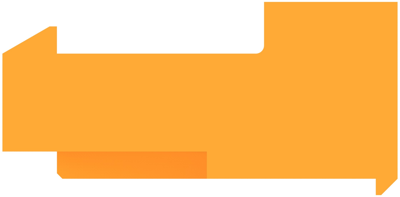

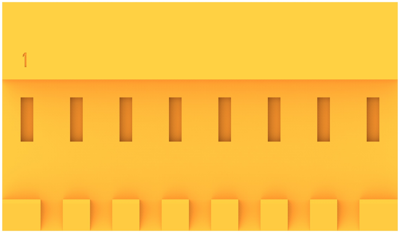

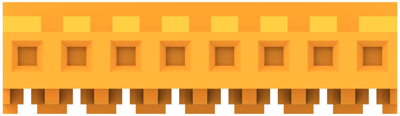

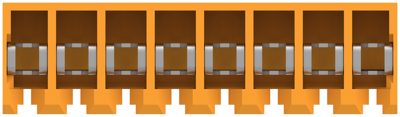

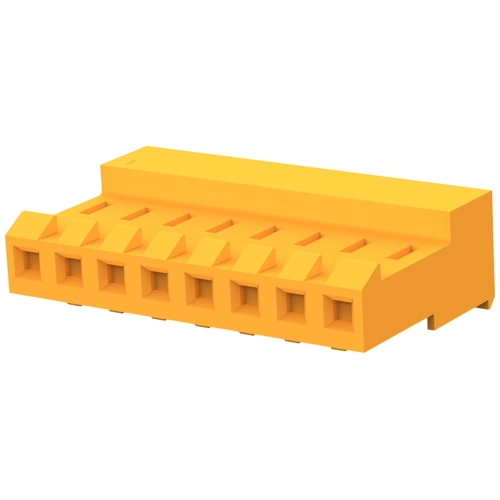

Socket housing, 8 pole, pitch 3.96 mm, straight, orange, 3-641217-8
Unit Price (€ / pc.)
4.7600 € *
Available in 5 Days: 1,180 pcs. - if ordered today
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7600 €
10 pcs.
4.4149 €
25 pcs.
4.1293 €
50 pcs.
3.7485 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-641217-8, AMP
Wire-to-Board, Printed Circuit Board, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: orange
- Number of positions: 8
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Connection plating | gold-plated | |
| Rated current | 7 A | |
| Version | socket housing | |
| Connection | IDC connection | |
| contact surface | gold-plated | |
| Number of rows | 1 | |
| Colour | orange | |
| Grid | 3.96 mm | |
| Contact type | socket | |
| Pin number | 8 pole | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
