3-641216-8 | AMP

Pin header, 8 pole, pitch 2.54 mm, angled, natural, 3-641216-8

Order No.: 35P1773
EAN: 4099889927917
MPN:
3-641216-8
Series: MTA-100

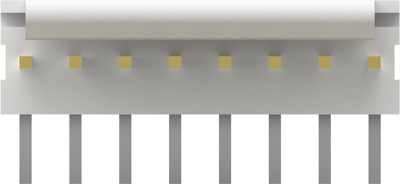

3-641216-8 AMP PCB Connection Systems Image 1

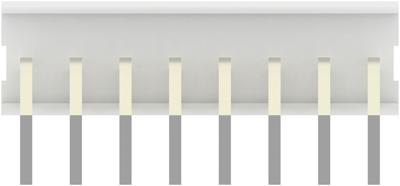

3-641216-8 AMP PCB Connection Systems Image 2

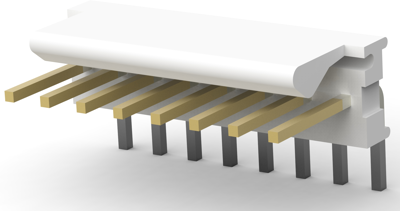

3-641216-8 AMP PCB Connection Systems Image 3

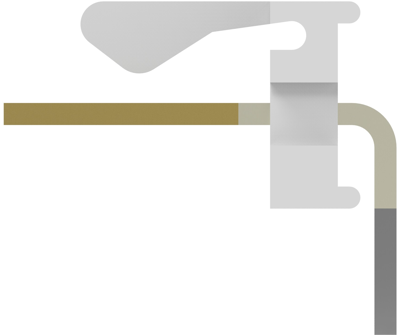

3-641216-8 AMP PCB Connection Systems Image 4

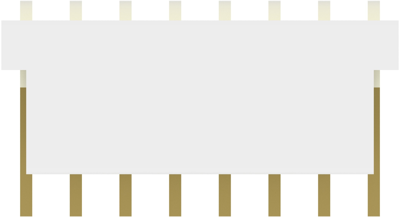

3-641216-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8088 € *
Available in 5 Days: 204 pcs. - if ordered today
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.6422 €
50 pcs.
1.4875 €
100 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-641216-8, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
contact surface gold-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 8 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
