3-641216-6 | AMP

Pin header, 6 pole, pitch 2.54 mm, angled, natural, 3-641216-6

Order No.: 35P1729
EAN: 4099889927559
MPN:
3-641216-6
Series: MTA-100
AMP

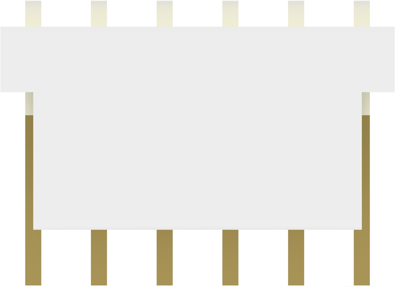

3-641216-6 AMP PCB Connection Systems Image 1

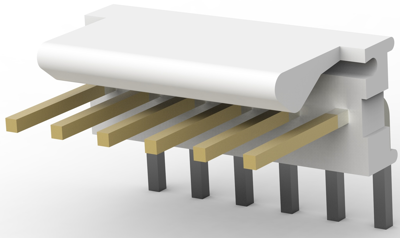

3-641216-6 AMP PCB Connection Systems Image 2

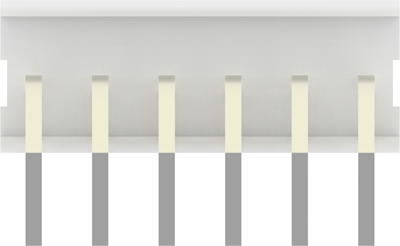

3-641216-6 AMP PCB Connection Systems Image 3

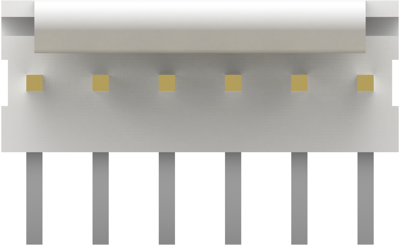

3-641216-6 AMP PCB Connection Systems Image 4

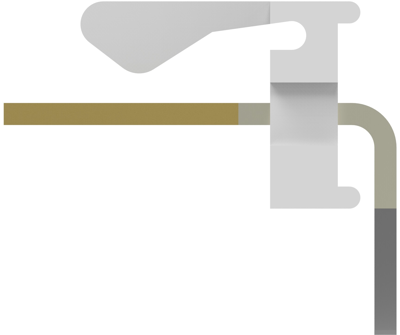

3-641216-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.5585 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
2.5585 €

PCB Connection System, 3-641216-6, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 6
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Colour natural
Contact type pin
contact surface gold-plated
Rated voltage 250 V
Rated current 5 A
Orientation angled
Pin number 6 pole
Grid 2.54 mm
Type of locking Yes
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
