3-641215-9 | AMP

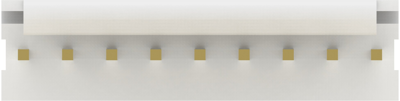

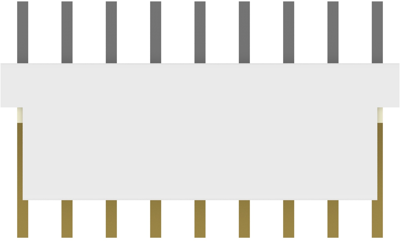

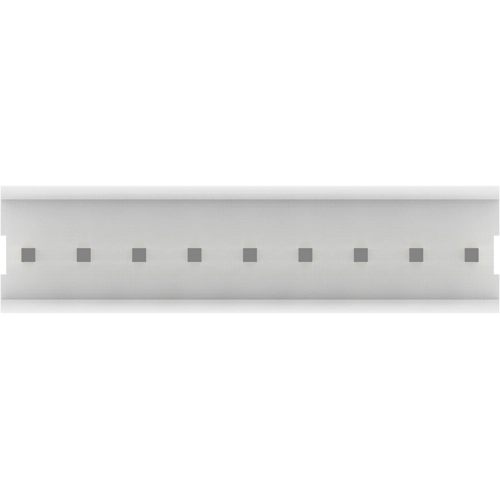

Pin header, 9 pole, pitch 2.54 mm, straight, natural, 3-641215-9
Unit Price (€ / pc.)
2.5823 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
2.58 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5823 €
10 pcs.
2.3681 €
50 pcs.
2.1301 €
100 pcs.
1.9159 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-641215-9, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 9 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Polyester - GF
- Housing Color: natural
- Orientation: straight
- Number of positions: 9
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Number of rows | 1 | |
| Grid | 2.54 mm | |
| Orientation | straight | |
| Pin number | 9 pole | |
| Connection | solder pin | |
| Type of locking | Yes | |
| Colour | natural | |
| Rated current | 5 A | |
| Additional parts | equipped | |
| Contact type | pin | |
| Version | pin header | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Rated voltage | 250 V |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
