3-641214-2 | AMP

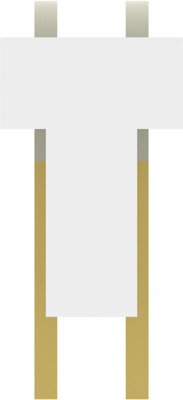

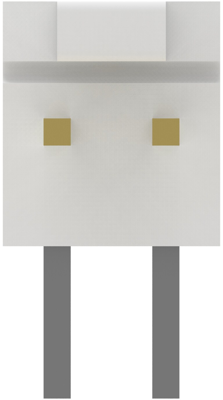

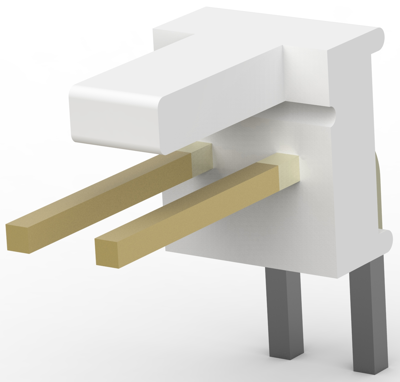

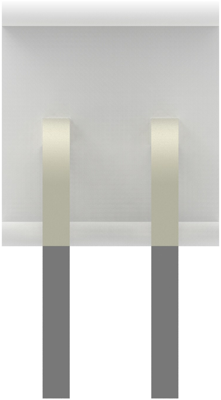

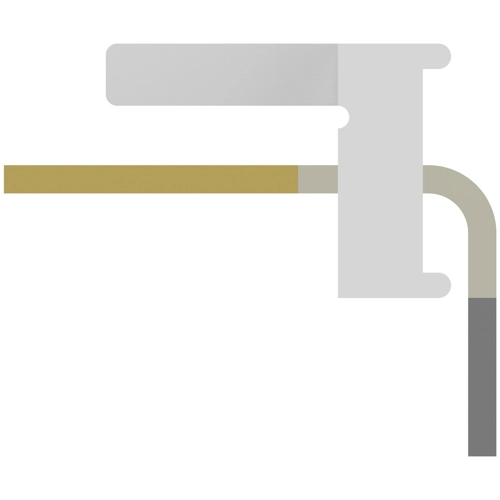

Pin header, 2 pole, pitch 2.54 mm, angled, natural, 3-641214-2
Unit Price (€ / pc.)
0.6188 € *
Standard delivery time from the manufacturer is: 21 Weeks
PCB Connection System, 3-641214-2, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Polyester - GF
- Housing Color: natural
- Orientation: angled
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 2 pole | |
| Colour | natural | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 5 A | |
| Version | pin header | |
| Connection | solder pin | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 250 V | |
| contact surface | gold-plated | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
