3-641192-6 | AMP

Socket housing, 6 pole, pitch 2.54 mm, angled, blue, 3-641192-6

Order No.: 35P2074
EAN: 4099889930153
MPN:
3-641192-6
Series: MTA-100

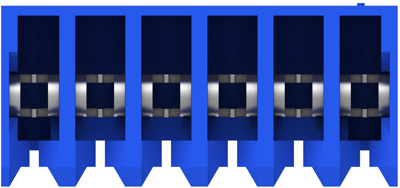

3-641192-6 AMP PCB Connection Systems Image 1

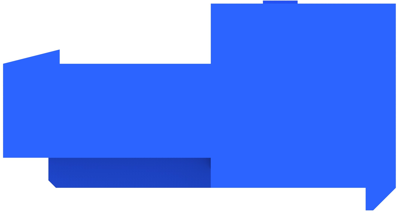

3-641192-6 AMP PCB Connection Systems Image 2

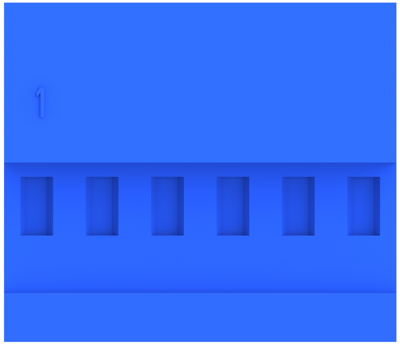

3-641192-6 AMP PCB Connection Systems Image 3

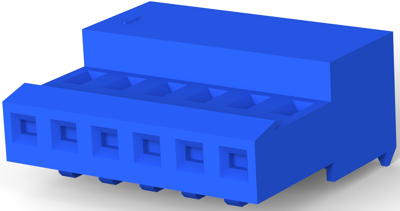

3-641192-6 AMP PCB Connection Systems Image 4

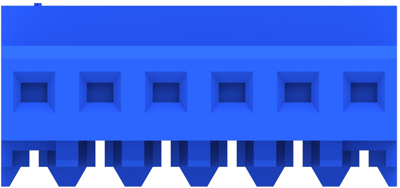

3-641192-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.3677 € *
Available in 5 Days: 85 pcs. - if ordered today
Total Price:
185.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
55 pcs.
3.3677 €

PCB Connection System, 3-641192-6, AMP

Wire-to-Board, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: blue
  • Number of positions: 6
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
contact surface gold-plated
Connection IDC connection
Number of rows 1
Colour blue
Contact type socket
Additional parts equipped
Rated current 5 A
Rated voltage 250 V
Pin number 6 pole
Orientation angled
Version socket housing
Type of locking Yes
Grid 2.54 mm
Logistics
Property Value
Customs tariff number 85366930
Country of origin TH
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
