3-641190-6 | AMP

Socket housing, 6 pole, pitch 2.54 mm, angled, red, 3-641190-6

Order No.: 35P2094
EAN: 4099889930283
MPN:
3-641190-6
Series: MTA-100

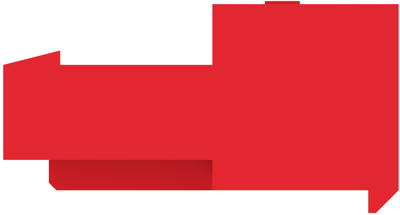

3-641190-6 AMP PCB Connection Systems Image 1

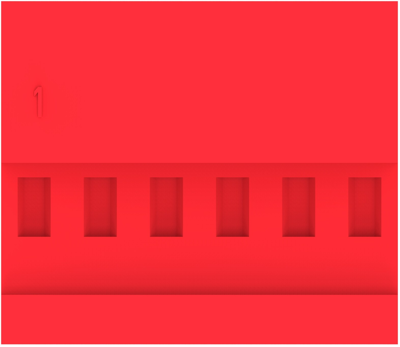

3-641190-6 AMP PCB Connection Systems Image 2

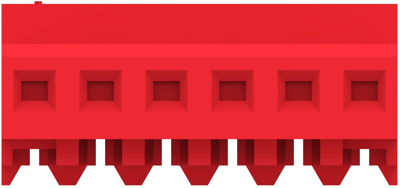

3-641190-6 AMP PCB Connection Systems Image 3

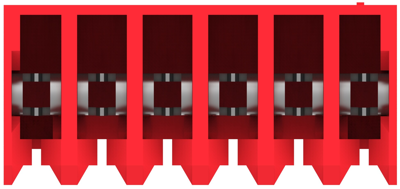

3-641190-6 AMP PCB Connection Systems Image 4

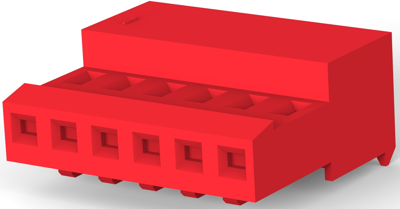

3-641190-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8207 € *
Available in 5 Days: 3,249 pcs. - if ordered today
Total Price:
182.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
1.8207 €

PCB Connection System, 3-641190-6, AMP

Wire-to-Board, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: red
  • Number of positions: 6
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour red
Type of locking Yes
contact surface gold-plated
Rated current 5 A
Grid 2.54 mm
Pin number 6 pole
Version socket housing
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
