3-641190-2 | AMP

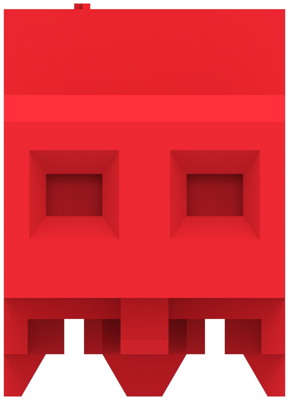

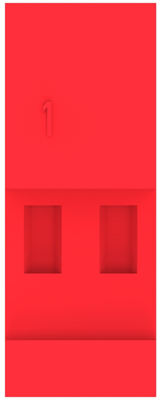

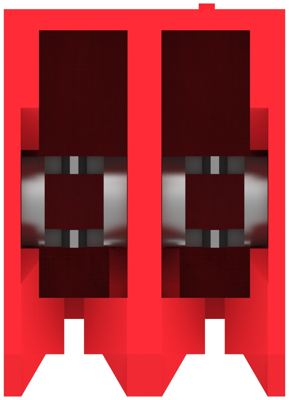

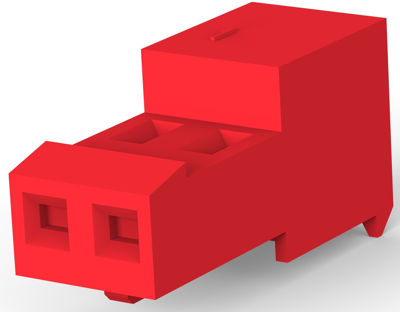

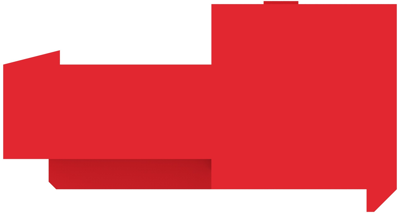

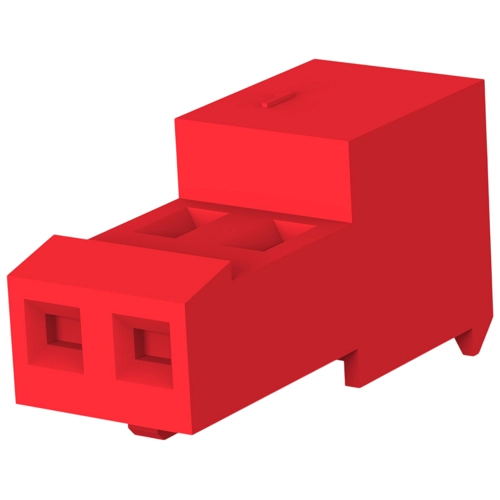

Socket housing, 2 pole, pitch 2.54 mm, angled, red, 3-641190-2
Unit Price (€ / pc.)
0.7735 € *
Available in 5 Days: 3,694 pcs. - if ordered today
PCB Connection System, 3-641190-2, AMP
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon 6/6
- Housing Color: red
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Additional parts | equipped | |
| Colour | red | |
| Rated current | 5 A | |
| Number of rows | 1 | |
| Connection | IDC connection | |
| Pin number | 2 pole | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Version | socket housing | |
| Type of locking | Yes | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
