3-640620-9 | AMP

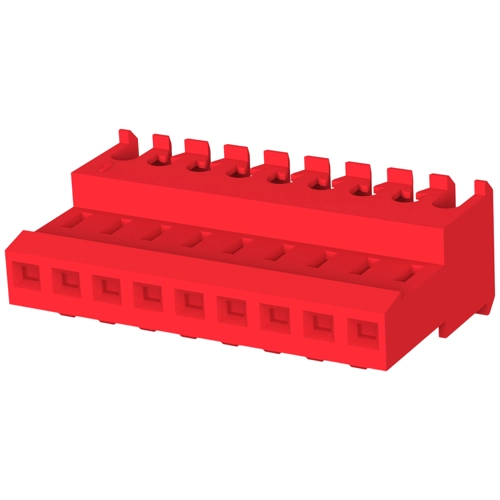

Socket housing, 9 pole, pitch 2.54 mm, angled, red, 3-640620-9

Order No.: 35P2156
EAN: 4099889930665
MPN:
3-640620-9

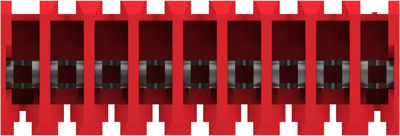

3-640620-9 AMP PCB Connection Systems Image 1

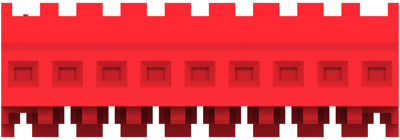

3-640620-9 AMP PCB Connection Systems Image 2

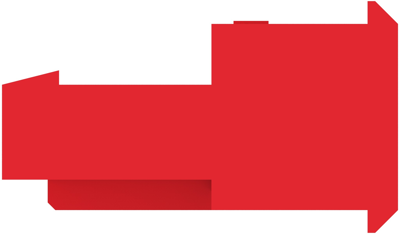

3-640620-9 AMP PCB Connection Systems Image 3

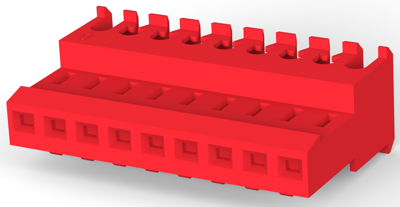

3-640620-9 AMP PCB Connection Systems Image 4

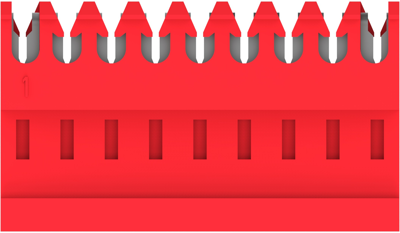

3-640620-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
7,711.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
1.2852 €

PCB Connection System, 3-640620-9, AMP

Wire-to-Board, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: red
  • Number of positions: 9
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
contact surface tin-plated
Connection IDC connection
Number of rows 1
Colour red
Contact type socket
Additional parts equipped
Rated current 5 A
Rated voltage 250 V
Pin number 9 pole
Orientation angled
Version socket housing
Type of locking Yes
Connection plating tin-plated
Grid 2.54 mm
Logistics
Customs tariff number 85366990
Country of origin TH
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
