3-640620-2 | AMP

Socket housing, 2 pole, pitch 2.54 mm, angled, red, 3-640620-2

Order No.: 35P1907
EAN: 4099889929034
MPN:
3-640620-2
Series: MTA-100

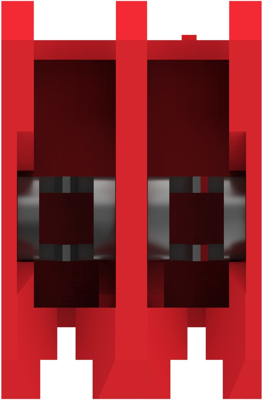

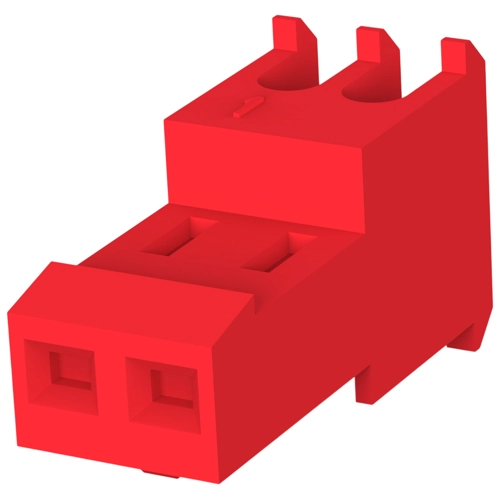

3-640620-2 AMP PCB Connection Systems Image 1

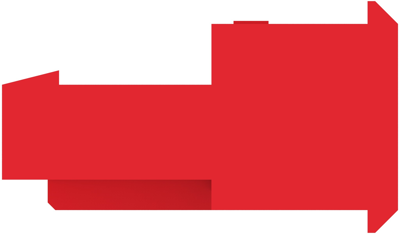

3-640620-2 AMP PCB Connection Systems Image 2

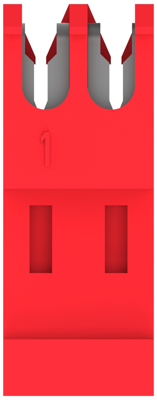

3-640620-2 AMP PCB Connection Systems Image 3

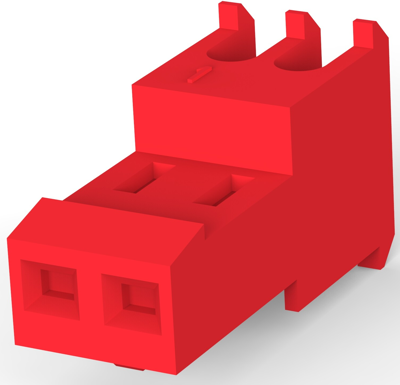

3-640620-2 AMP PCB Connection Systems Image 4

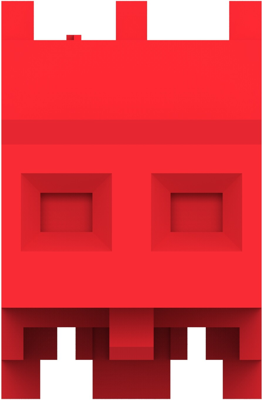

3-640620-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3927 € *
Next delivery: 1,000 pcs. on 2025-07-09
Available in 5 Days: 752 pcs. - if ordered today
Total Price:
0.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.3927 €

PCB Connection System, 3-640620-2, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: red
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
Additional parts equipped
Number of rows 1
Version socket housing
Connection IDC connection
Grid 2.54 mm
Rated current 5 A
Pin number 2 pole
Colour red
contact surface tin-plated
Connection plating tin-plated
Rated voltage 250 V
Contact type socket
Orientation angled
Type of locking Yes
Logistics
Property Value
Country of origin TH
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
