3-640602-4 | AMP

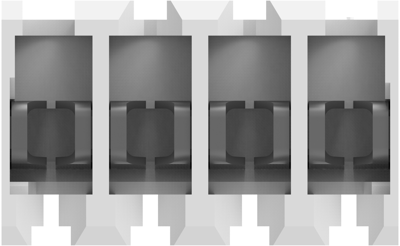

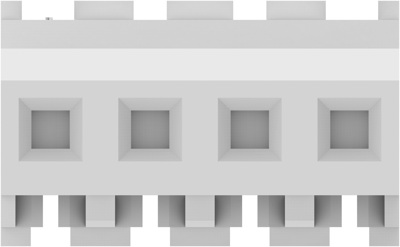

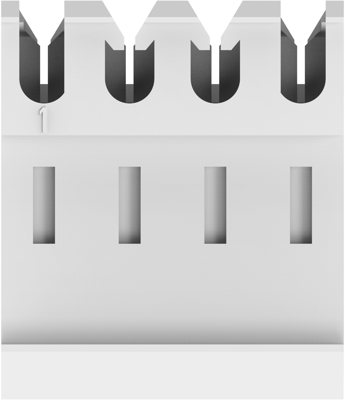

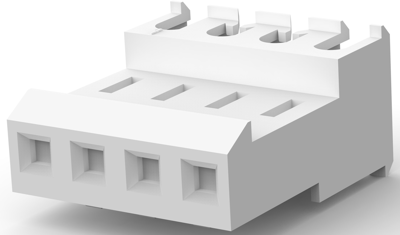

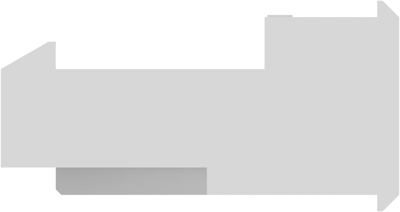

Socket housing, 4 pole, pitch 3.96 mm, straight, white, 3-640602-4
Unit Price (€ / pc.)
0.8806 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8806 €
10 pcs.
0.8211 €
25 pcs.
0.7616 €
50 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-640602-4, AMP
Wire-to-Board, Printed Circuit Board, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: white
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 7 A | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Version | socket housing | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Grid | 3.96 mm | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Contact type | socket | |
| Colour | white | |
| Pin number | 4 pole | |
| Connection | IDC connection | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
