3-640602-3 | AMP

Socket housing, 3 pole, pitch 3.96 mm, straight, white, 3-640602-3

Order No.: 35P1222
EAN: 4099889923513
MPN:
3-640602-3
Series: MTA-156

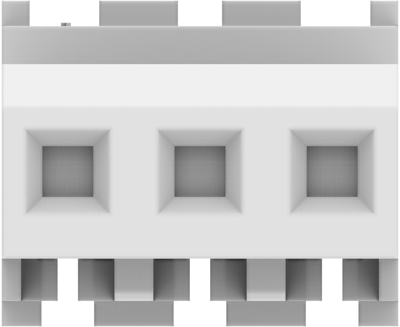

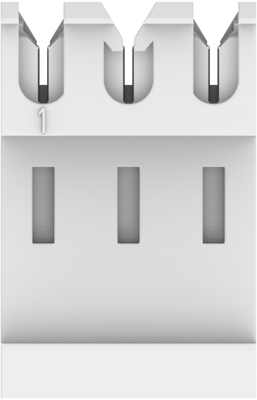

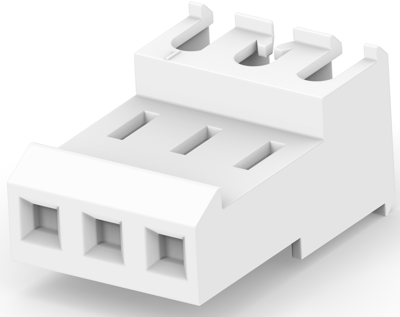

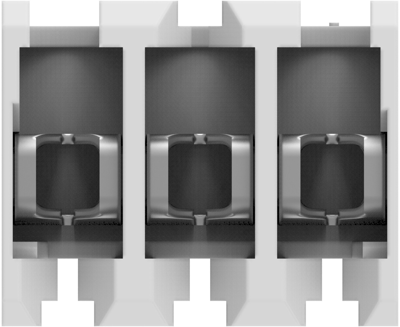

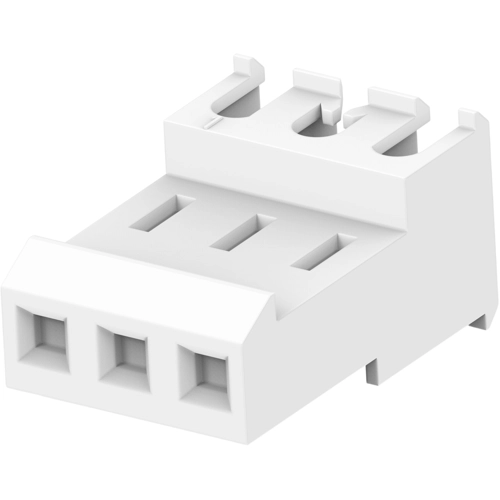

3-640602-3 AMP PCB Connection Systems Image 1
3-640602-3 AMP PCB Connection Systems Image 2
3-640602-3 AMP PCB Connection Systems Image 3
3-640602-3 AMP PCB Connection Systems Image 4
3-640602-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
4,664.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
14000 pcs.
0.3332 €

PCB Connection System, 3-640602-3, AMP

Wire-to-Board, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: white
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
Rated voltage 600 V
Orientation straight
Pin number 3 pole
Version socket housing
Colour white
Grid 3.96 mm
Rated current 7 A
Type of locking Yes
Contact type socket
Number of rows 1
Connection IDC connection
Connection plating tin-plated
contact surface tin-plated
Additional parts equipped
Logistics
Property Value
Country of origin TH
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
