3-640445-8 | AMP

Pin header, 8 pole, pitch 3.96 mm, straight, natural, 3-640445-8

Order No.: 35P1067
EAN: 4099889922035
MPN:
3-640445-8

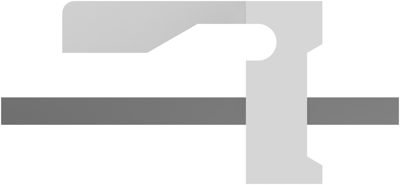

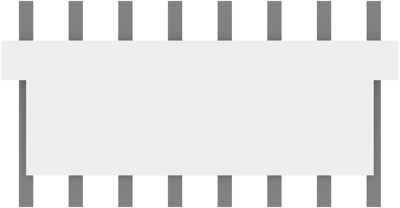

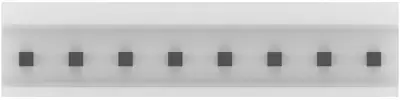

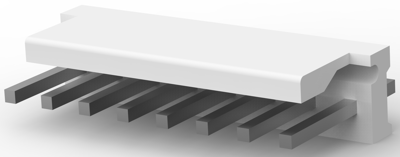

3-640445-8 AMP PCB Connection Systems Image 1
3-640445-8 AMP PCB Connection Systems Image 2
3-640445-8 AMP PCB Connection Systems Image 3
3-640445-8 AMP PCB Connection Systems Image 4
3-640445-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.595 € *
Available in 5 Days: 9,590 pcs. - if ordered today
Total Price:
0.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.595 €

PCB Connection System, 3-640445-8, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Rated voltage 600 V
Additional parts equipped
contact surface tin-plated
Rated current 7 A
Grid 3.96 mm
Orientation straight
Version pin header
Connection plating tin-plated
Connection solder pin
Contact type pin
Type of locking Yes
Number of rows 1
Colour natural
Pin number 8 pole
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
