3-640443-8 | AMP

Socket housing, 8 pole, pitch 2.54 mm, angled, green, 3-640443-8

Order No.: 35P2132
EAN: 4099889930528
MPN:
3-640443-8
Series: MTA-100

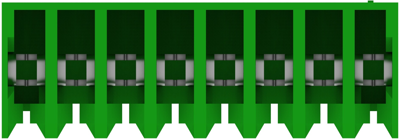

3-640443-8 AMP PCB Connection Systems Image 1

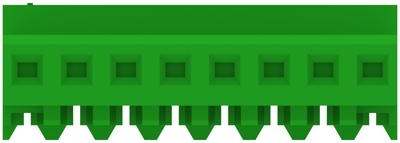

3-640443-8 AMP PCB Connection Systems Image 2

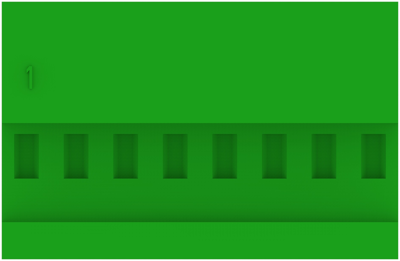

3-640443-8 AMP PCB Connection Systems Image 3

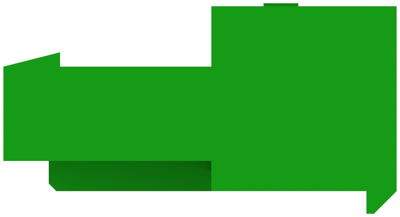

3-640443-8 AMP PCB Connection Systems Image 4

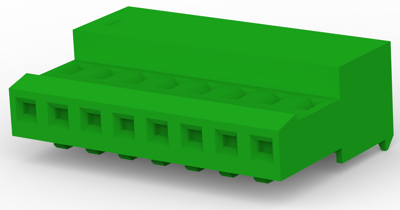

3-640443-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.1662 € *
Available in 5 Days: 398 pcs. - if ordered today
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
10 pcs.
1.0472 €
50 pcs.
0.9401 €
100 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-640443-8, AMP

Wire-to-Board, Wire & Cable, 8 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: green
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour green
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 8 pole
Version socket housing
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
