3-640442-9 | AMP

Socket housing, 9 pole, pitch 2.54 mm, angled, blue, 3-640442-9

Order No.: 35P2153
EAN: 4099889930641
MPN:
3-640442-9
Series: MTA-100

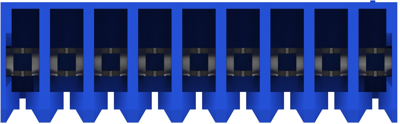

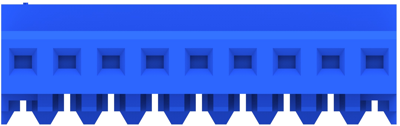

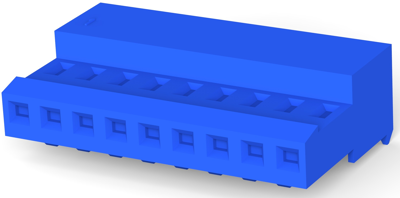

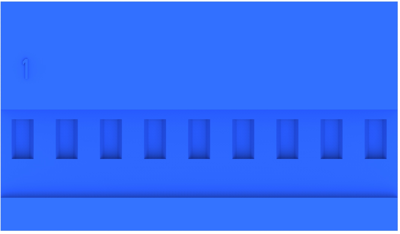

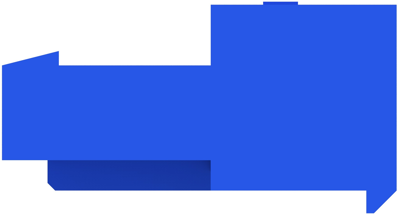

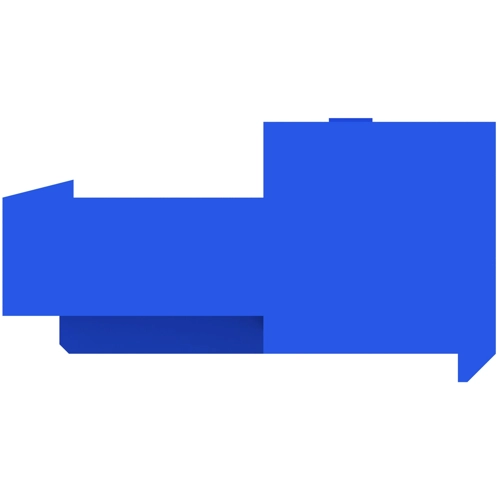

3-640442-9 AMP PCB Connection Systems Image 1
3-640442-9 AMP PCB Connection Systems Image 2
3-640442-9 AMP PCB Connection Systems Image 3
3-640442-9 AMP PCB Connection Systems Image 4
3-640442-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2852 € *
Available in 5 Days: 650 pcs. - if ordered today
Total Price:
7,711.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
1.2852 €

PCB Connection System, 3-640442-9, AMP

Wire-to-Board, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: blue
  • Number of positions: 9
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour blue
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 9 pole
Version socket housing
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
