3-640442-3 | AMP

Socket housing, 3 pole, pitch 2.54 mm, angled, blue, 3-640442-3

Order No.: 35P1950
EAN: 4099889929379
MPN:
3-640442-3
Series: MTA-100

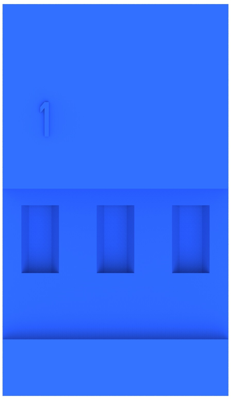

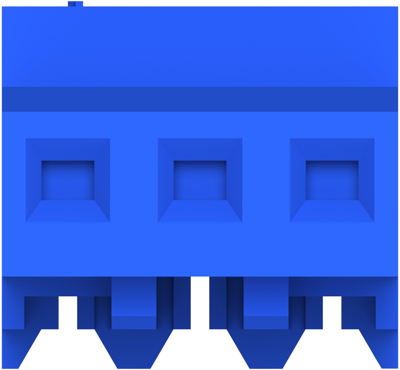

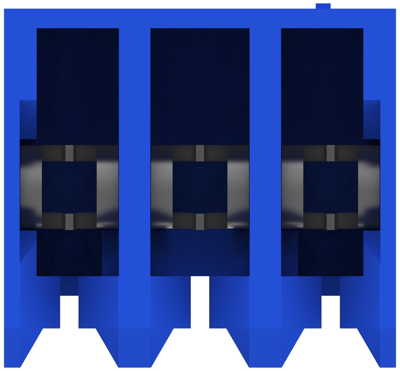

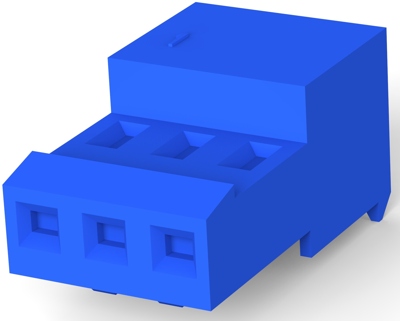

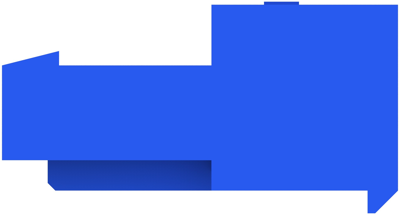

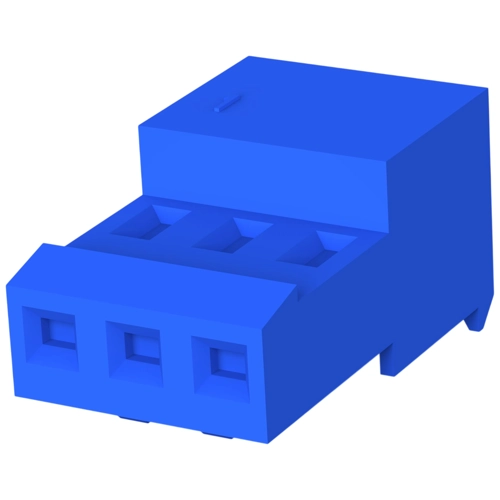

3-640442-3 AMP PCB Connection Systems Image 1
3-640442-3 AMP PCB Connection Systems Image 2
3-640442-3 AMP PCB Connection Systems Image 3
3-640442-3 AMP PCB Connection Systems Image 4
3-640442-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2713 € *
Available: 1,363 pcs.
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2713 €
10 pcs.
0.2511 €
25 pcs.
0.2344 €
50 pcs.
0.2118 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-640442-3, AMP

Wire-to-Board, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: blue
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version socket housing
Rated current 5 A
Rated voltage 250 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour blue
Pin number 3 pole
Connection IDC connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
