3-640440-4 | AMP

Socket header, 4 pole, pitch 2.54 mm, angled, red, 3-640440-4

Order No.: 35P1988
EAN: 4099889929607
MPN:
3-640440-4
Series: MTA-100

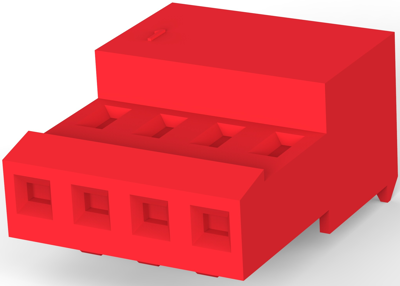

3-640440-4 AMP PCB Connection Systems Image 1

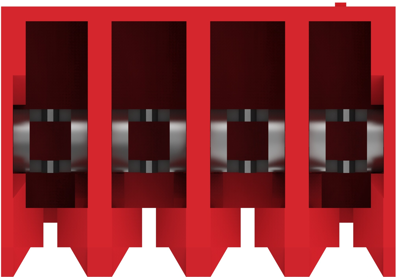

3-640440-4 AMP PCB Connection Systems Image 2

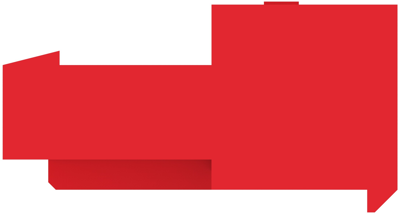

3-640440-4 AMP PCB Connection Systems Image 3

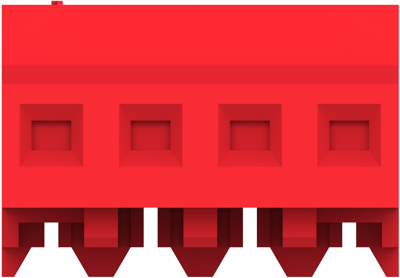

3-640440-4 AMP PCB Connection Systems Image 4

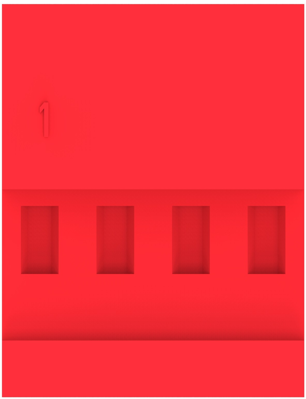

3-640440-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4403 € *
Available in 5 Days: 19,773 pcs. - if ordered today
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.3927 €
50 pcs.
0.3451 €
100 pcs.
0.2975 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-640440-4, AMP

Wire-to-Board, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: red
  • Orientation: angled
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
Type of locking Yes
Connection plating tin-plated
Additional parts equipped
Orientation angled
Pin number 4 pole
contact surface tin-plated
Rated voltage 250 V
Connection IDC connection
Colour red
Number of rows 1
Grid 2.54 mm
Rated current 5 A
Contact type socket
Version socket header
Logistics
Property Value
Customs tariff number 85366930
Country of origin TW
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
