3-640433-7 | AMP

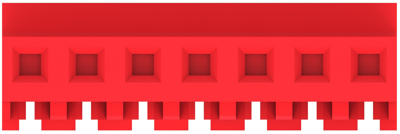

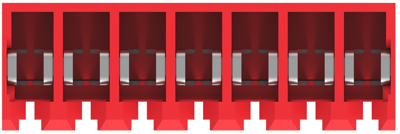

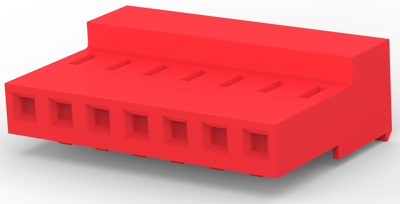

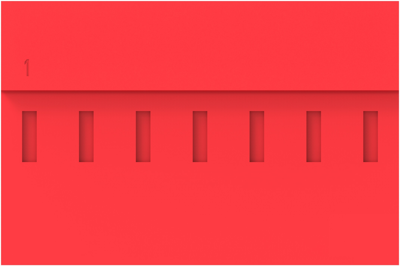

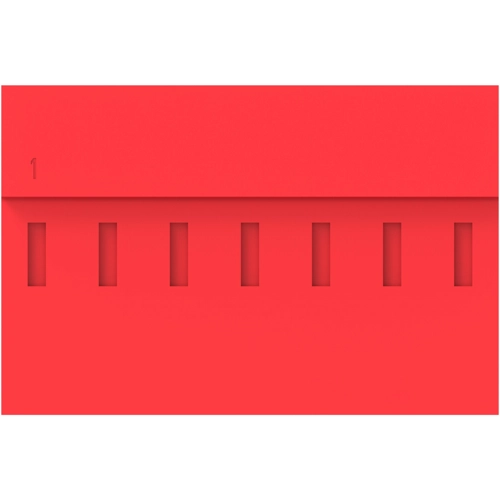

Socket header, 7 pole, pitch 3.96 mm, straight, red, 3-640433-7
Unit Price (€ / pc.)
1.3685 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
1.37 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3685 €
10 pcs.
1.2733 €
25 pcs.
1.1900 €
50 pcs.
1.0829 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 3-640433-7, AMP
Rectangular power connector, Connector assembly, Receptacle, Wire-to-Board, 7 Position, 3.96 mm Centerline, Wire & Cable, UL 94V-2.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | tin-plated | |
| Pin number | 7 pole | |
| Type of locking | No | |
| Rated voltage | 600 V | |
| Connection plating | tin-plated | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 3.96 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | IDC connection | |
| Rated current | 7 A | |
| Colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
