3-6318491-6 | AMP

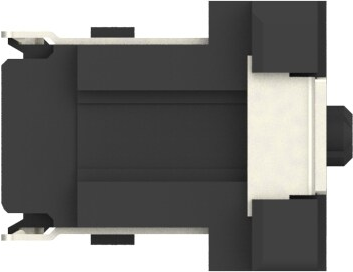

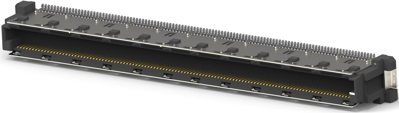

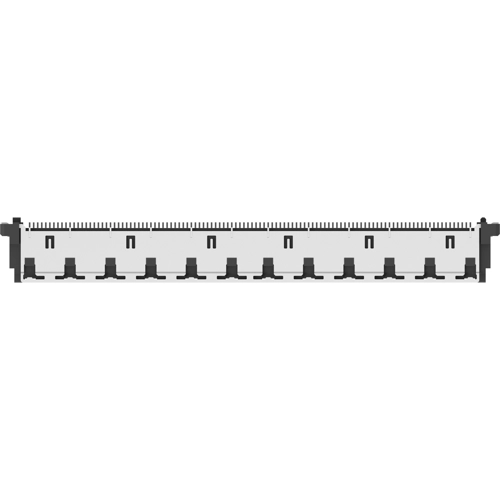

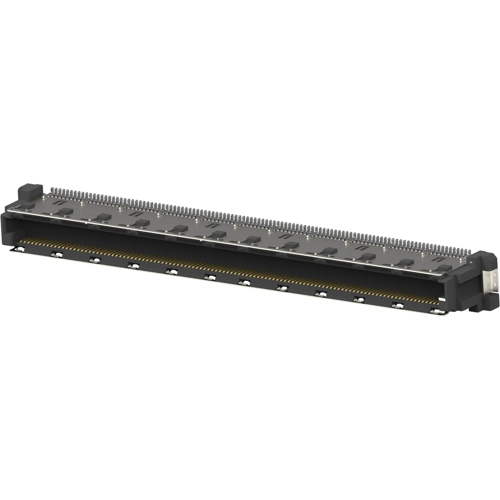

Pin header, 220 pole, pitch 0.5 mm, straight, black, 3-6318491-6
Unit Price (€ / pc.)
33.7484 € *
Available: 18 pcs.
Available in 5 Days: 3,254 pcs. - if ordered today
Total Price:
33.75 € *
Price list
Quantity
Price per unit*
1 pcs.
33.7484 €
5 pcs.
32.0110 €
10 pcs.
29.9404 €
25 pcs.
27.2986 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-6318491-6, AMP
Board-to-Board, Printed Circuit Board, Vertical, 220 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: High Temperature Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 220
- Operating Temperature Range: -40 – 85 °C [-40 – 185 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 0.5 mm
- PCB Mount Retention: With
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 50 V | |
| Orientation | straight | |
| Pin number | 220 pole | |
| Version | pin header | |
| Colour | black | |
| Grid | 0.5 mm | |
| Rated current | 500 mA | |
| Contact type | pin | |
| Number of rows | 2 | |
| Connection | SMD | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
