3-5499206-0 | AMP

Pin header, 50 pole, pitch 2.54 mm, straight, blue, 3-5499206-0

Order No.: 36P5701
EAN: 4099889945447
MPN:
3-5499206-0
Series: AMP-LATCH

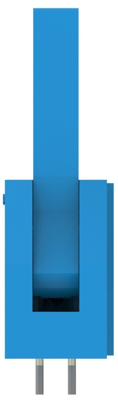

3-5499206-0 AMP PCB Connection Systems Image 1

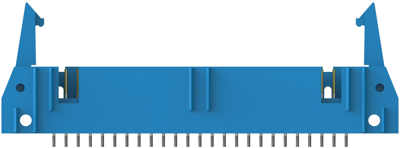

3-5499206-0 AMP PCB Connection Systems Image 2

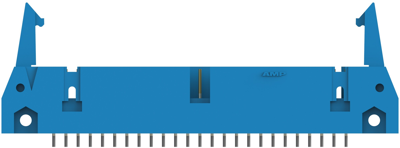

3-5499206-0 AMP PCB Connection Systems Image 3

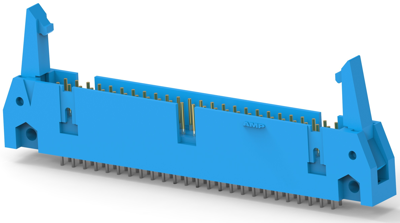

3-5499206-0 AMP PCB Connection Systems Image 4
3-5499206-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
20.1586 € *
Available in 5 Days: 52 pcs. - if ordered today
Total Price:
20.16 € *
Price list
Quantity
Price per unit*
1 pcs.
20.1586 €
10 pcs.
18.5402 €
25 pcs.
16.6838 €
50 pcs.
15.0178 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-5499206-0, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 50 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Glass Filled Nylon/Polyester
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 50
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Colour blue
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 50 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
