3-5177986-5 | AMP

Pin header, 120 pole, pitch 0.8 mm, straight, natural, 3-5177986-5

Order No.: 36P4774
EAN: 4099889940626
MPN:
3-5177986-5
Series: 0.8mm FH

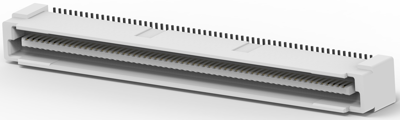

3-5177986-5 AMP PCB Connection Systems Image 1

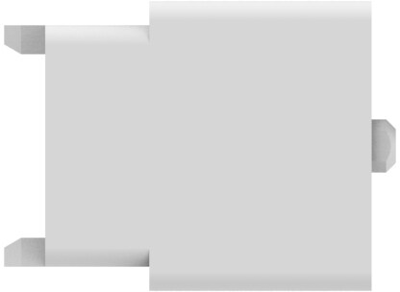

3-5177986-5 AMP PCB Connection Systems Image 2

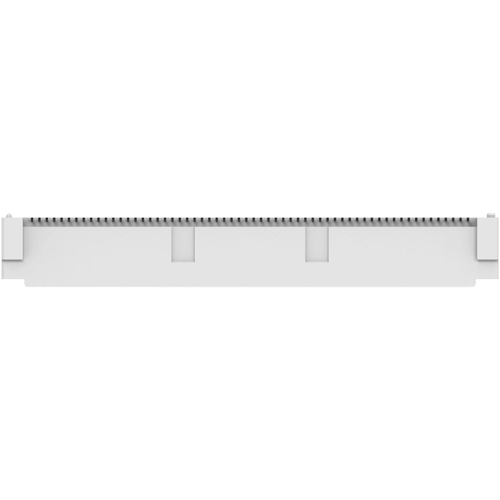

3-5177986-5 AMP PCB Connection Systems Image 3

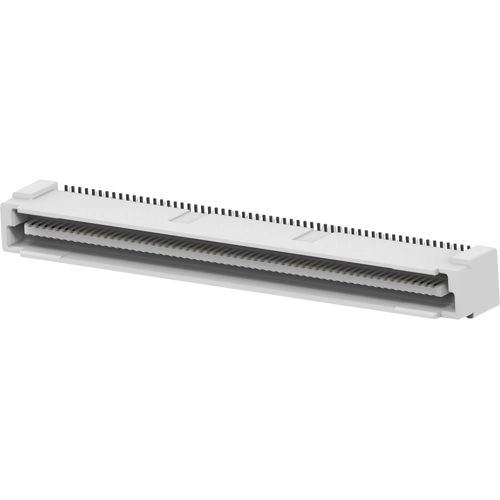

3-5177986-5 AMP PCB Connection Systems Image 4
3-5177986-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
10.4363 € *
Available in 5 Days: 1,600 pcs. - if ordered today
Total Price:
4,174.52 € *
Price list
Quantity
Price per unit*
400 pcs.
10.4363 €
800 pcs.
9.4843 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-5177986-5, AMP

Board-to-Board, Printed Circuit Board, Vertical, 120 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Brass
  • Housing Material: Matte
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 120
  • Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.8 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
contact surface gold-plated
Rated current 500 mA
Grid 0.8 mm
Connection plating gold-plated
Pin number 120 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Rated voltage 100 V
Number of rows 2
Logistics
Country of origin TW
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
