3-350945-0 | AMP

Pin header, 5 pole, pitch 6.35 mm, angled, natural, 3-350945-0

Order No.: 35P4775
EAN: 4099889934441
MPN:
3-350945-0

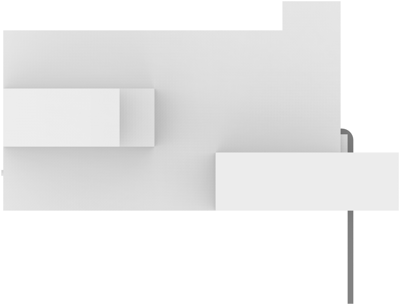

3-350945-0 AMP PCB Connection Systems Image 1

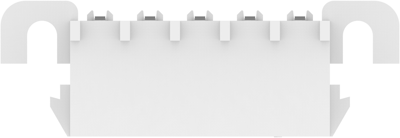

3-350945-0 AMP PCB Connection Systems Image 2

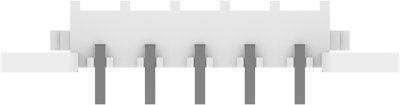

3-350945-0 AMP PCB Connection Systems Image 3

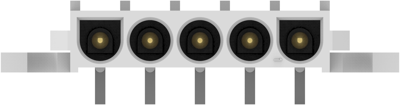

3-350945-0 AMP PCB Connection Systems Image 4

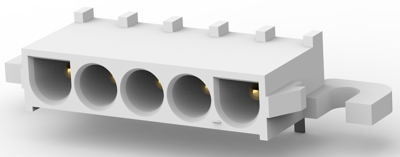

3-350945-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
6.0928 € *
Available in 5 Days: 3,977 pcs. - if ordered today
Total Price:
6.09 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0928 €
10 pcs.
5.6525 €
25 pcs.
5.2717 €
50 pcs.
4.7957 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-350945-0, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 5 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 5
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Rated current 12 A
Type of locking Yes
Contact type pin
Colour natural
Connection plating tin-plated
Number of rows 1
Additional parts equipped
Connection solder pin
Orientation angled
Grid 6.35 mm
Rated voltage 600 V
Pin number 5 pole
Version pin header
contact surface gold-plated
Logistics
Property Value
Country of origin JP
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
