3-1827253-6 | AMP

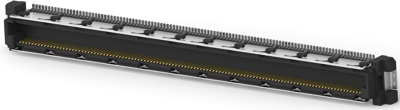

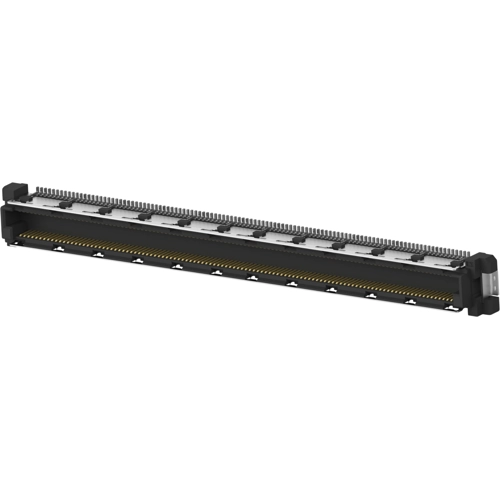

Pin header, 220 pole, pitch 0.5 mm, straight, black, 3-1827253-6
Unit Price (€ / pc.)
29.6429 € *
Available in 5 Days: 240 pcs. - if ordered today
PCB Connection System, 3-1827253-6, AMP
Board-to-Board, Printed Circuit Board, Vertical, 220 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: High Temperature Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 220
- Operating Temperature Range: -40 – 85 °C [-40 – 185 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 0.5 mm
- PCB Mount Retention: With
- Contact Layout: Inline
Technical specifications
| Colour | black | |
| contact surface | gold-plated | |
| Rated current | 500 mA | |
| Grid | 0.5 mm | |
| Connection plating | gold-plated | |
| Pin number | 220 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | SMD | |
| Contact type | pin | |
| Rated voltage | 50 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
