3-1827231-6 | AMP

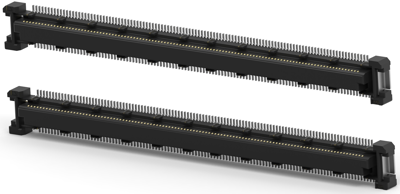

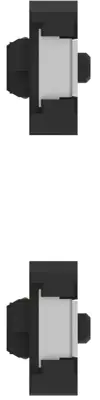

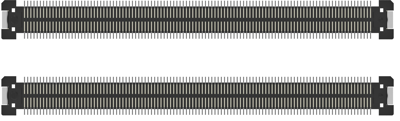

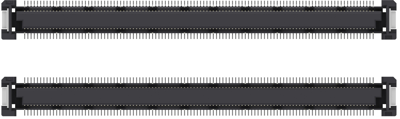

Socket header, 440 pole, pitch 0.5 mm, straight, black, 3-1827231-6
Unit Price (€ / pc.)
45.2200 € *
Available in 5 Days: 3,933 pcs. - if ordered today
Total Price:
45.22 € *
Price list
Quantity
Price per unit*
1 pcs.
45.2200 €
2 pcs.
42.3045 €
5 pcs.
39.7341 €
10 pcs.
36.9376 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-1827231-6, AMP
Board-to-Board, Printed Circuit Board, Vertical, 440 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: High Temperature Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 440
- Operating Temperature Range: -40 – 85 °C [-40 – 185 °F]
- Insulation Resistance: 4 MΩ
- Centerline (Pitch): 0.5 mm
- PCB Mount Retention: With
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | straight | |
| Pin number | 440 pole | |
| Connection | SMD | |
| Rated current | 500 mA | |
| Colour | black | |
| Grid | 0.5 mm | |
| Number of rows | 4 | |
| contact surface | gold-plated | |
| Rated voltage | 50 V | |
| Connection plating | gold-plated | |
| Version | socket header | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
